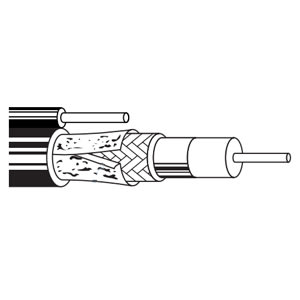

9065M - Coaxial Cable (14 AWG)
Belden 9065M is a coaxial cable designed for industrial signal transmission applications.
This cable features 14 AWG, 1-strand bare copper-covered steel conductors with an overall Duobond Foil/Aluminum Braid with shorting fold in the outermost foil shield. the cable uses Gas-Injected Foam Polyethylene (FPE) insulation and a Polyvinylchloride (PVC) jacket, with nominal outside diameter of .400x.580 inches. The cable operates up to 80C. Approximate weight is 86 lbs/MFT.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 9065M?
Belden 9065M features 14 AWG conductors.
What shielding does Belden 9065M have?
Belden 9065M has an overall Duobond Foil/Aluminum Braid with shorting fold in the outermost foil shield.
What is the temperature rating for Belden 9065M?
Belden 9065M is rated for operation up to 80C.
9065M
Part Number
9065M
Attributes
86
14
Bare Copper Clad Steel, Bare Copper-Covered Steel
solid
0.28
Gas-Injected Foam Polyethylene (FPE)
Polyvinylchloride (PVC)
80C
1
16.2
11.0O/M'
3.8O/M'
0.064
75
.400x.580
Overall Braid and Foil Shield
100%, 77%
Duobond Foil/Aluminum Braid with shorting fold in the outermost foil
