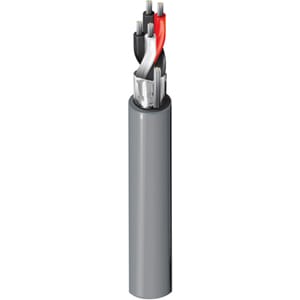

9502 - Instrumentation Cable (24 AWG, 2-Pair, 300V)
Belden 9502 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 2 pairs of 24 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 80C and is approved to NEC Type CMG and CSA Type AWM I A standards. Approximate weight is 30 lbs/MFT with Chart 3 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 9502 have?
Belden 9502 contains 2 pairs.
What is the voltage rating of Belden 9502?
This cable is rated for 300 volts.
What shielding does Belden 9502 have?
Belden 9502 has an overall Beldfoil shield.
What NEC type is Belden 9502?
Belden 9502 is rated NEC Type CMG.
9502
Part Number
9502
MFG #
9502 0601000
Attributes
30
24
Chart 3
Tinned Copper
7/32
AWM I A
24 AWG Stranded Tinned Copper
Polyvinylchloride (PVC)
Polyvinylchloride (PVC)
80C
CMG
2
7
30
50
24.0O/M'
17.0O/M'
75
0.222
Overall Foil Shield
1
Beldfoil
32
2464
0.6
300
