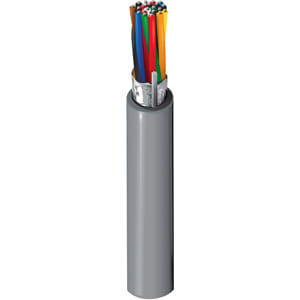

9510 - Instrumentation Cable (24 AWG, 10-Pair, 300V)
Belden 9510 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 10 pairs of 24 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Semi-Rigid Polyvinylchloride (SR-PVC) insulation and a Polyvinylchloride (PVC) jacket. The cable operates from -30C to 80C and is approved to NEC Type CMG and CSA Type AWM I A standards. Approximate weight is 74 lbs/MFT with Chart 3 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 9510 have?
Belden 9510 contains 10 pairs.
What is the voltage rating of Belden 9510?
This cable is rated for 300 volts.
What shielding does Belden 9510 have?
Belden 9510 has an overall Beldfoil shield.
What NEC type is Belden 9510?
Belden 9510 is rated NEC Type CMG.
9510
Part Number
9510
Attributes
74
24
Chart 3
Tinned Copper
7/32
AWM I A
24 AWG Stranded Tinned Copper
Semi-Rigid Polyvinylchloride (SR-PVC)
Polyvinylchloride (PVC)
80C
-30C
CMG
10
7
30
50
24.0O/M'
16.5O/M'
75
0.368
Overall Foil Shield
1
Beldfoil
32
2464
0.6
300
