9686 - Instrumentation Cable ()

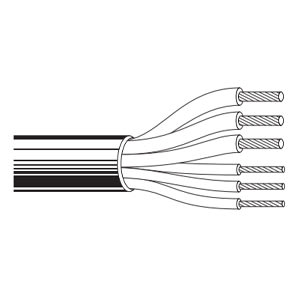

Belden 9686 is a instrumentation cable designed for industrial instrumentation and control applications.
This 6-conductor cable tinned copper conductors. the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 90C and is approved to NEC Type CM standards. Approximate weight is 65 lbs/MFT with Green/Blue/Purple and Black/Red/Yellow color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What NEC type is Belden 9686?
Belden 9686 is rated NEC Type CM.
9686
Part Number
9686
Attributes
6
65.00
Green, Blue, Purple and Black, Red, Yellow
(3) 20 AWG 7/28 Conductors and (3) 16 AWG 19/28 Conductors
Tinned Copper
Polyvinylchloride (PVC)
Polyvinylchloride (PVC)
0.032
90C
CM
0.295
