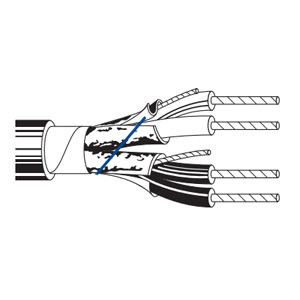

9738
Part Number
9738
Attributes
Approx LBS/MFT
334
AWG Size
24
Color Code Chart
Chart 3
Cond. Material
Tinned Copper
Conductor Stranding
7/32
Drain Wire
24 AWG Stranded Tinned Copper
Insul. Material
Datalene
Jacket Material
Polyvinylchloride (PVC)
Max. Temp
80C
NEC Type
CM
No. of Pairs
27
No. of Strands
7
Nom. Cap. (C-C)
12.5
Nom. Cap. (C-SC)
23.2
Nom. DCR of Cond.
24.0O/M'
Nom. DCR of Shld.
15.0O/M'
Nom. Dia. of Cond.
0.024
Nom. Imp.
100
Nom. Insul. Thick. (in)
0.061
Nom. O.D. of Cable (in)
0.797
Shield
Individually Foil Shielded Pairs
Shield Coverage
100%
Shield Material
Beldfoil
Strand Size
32
UL Style
2493
Vel. of Prop.
76%
Voltage
300
