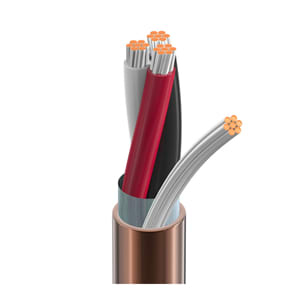

9770 - Instrumentation Cable (22 AWG, 300V)
Belden 9770 is a instrumentation cable designed for industrial instrumentation and control applications.
This cable features 3 conductors of 22 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polypropylene (PP) insulation and a Polyvinylchloride (PVC) jacket. The cable operates from -20C to 90C and is approved to NEC Type CM standards. Approximate weight is 17 lbs/MFT with Black/Red/White color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 9770?
Belden 9770 features 22 AWG conductors.
What is the voltage rating of Belden 9770?
This cable is rated for 300 volts.
What shielding does Belden 9770 have?
Belden 9770 has an overall Beldfoil shield.
What NEC type is Belden 9770?
Belden 9770 is rated NEC Type CM.
9770
Part Number
9770
MFG #
9770 0011000
Attributes
3
17
22
Black, Red, White
Tinned Copper
7/30
22 AWG Stranded Tinned Copper
Polypropylene (PP)
Polyvinylchloride (PVC)
0.02
90C
-20C
CM
7
32
60
0.008
0.145
Overall Foil Shield
100%
Beldfoil
30
300
