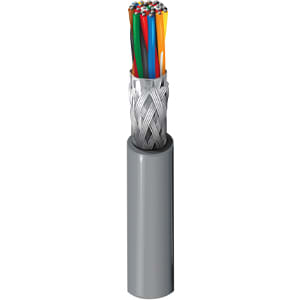

9813 - Instrumentation Cable (28 AWG, 13-Pair, 30V)
Belden 9813 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 13 pairs of 28 AWG, 7-strand tinned copper conductors with an overall Beldfoil/Tinned Copper Braid shield. Rated for 30V, the cable uses Polypropylene (PP) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 60C and is approved to NEC Type CL2 standards. Approximate weight is 66 lbs/MFT with Chart 3 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 9813 have?
Belden 9813 contains 13 pairs.
What is the voltage rating of Belden 9813?
This cable is rated for 30 volts.
What shielding does Belden 9813 have?
Belden 9813 has an overall Beldfoil/Tinned Copper Braid shield.
What NEC type is Belden 9813?
Belden 9813 is rated NEC Type CL2.
9813
Part Number
9813
Attributes
66
28
Chart 3
Tinned Copper
7/36
28 AWG Stranded Tinned Copper
Polypropylene (PP)
Polyvinylchloride (PVC)
60C
CL2
13
7
15.5
27.5
64.9O/M'
2.2O/M'
100
0.336
Overall Braid and Foil Shield
100% & 90%
Beldfoil/Tinned Copper Braid
36
2960
0.66
30
