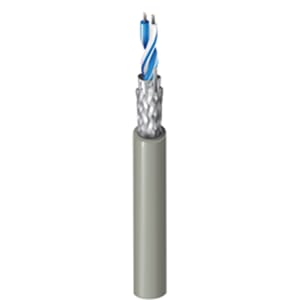

9841 - Instrumentation Cable (24 AWG, 30V)
Belden 9841 is a instrumentation cable designed for industrial instrumentation and control applications.
This single-pair cable features 24 AWG, 7-strand tinned copper conductors with an overall Beldfoil/Tinned Copper Braid shield. Rated for 30V, the cable uses Polyethylene (PE) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 80C and is approved to NEC Type CM standards. Approximate weight is 40 lbs/MFT with Chart 5 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 9841?
Belden 9841 features 24 AWG conductors.
What is the voltage rating of Belden 9841?
This cable is rated for 30 volts.
What shielding does Belden 9841 have?
Belden 9841 has an overall Beldfoil/Tinned Copper Braid shield.
What NEC type is Belden 9841?
Belden 9841 is rated NEC Type CM.
9841
Part Number
9841
Attributes
40
24
Chart 5
Tinned Copper
7/32
24 AWG Stranded Tinned Copper
Polyethylene (PE)
Polyvinylchloride (PVC)
80C
CM
1
7
12.8
23
24.0O/M'
3.4O/M'
120
0.232
Overall Braid and Foil Shield
100% & 90%
Beldfoil/Tinned Copper Braid
32
2919
0.66
30
