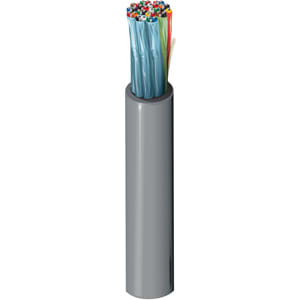

9876 - Instrumentation Cable (20 AWG, 11-Pair, 30V)
Belden 9876 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 11 pairs of 20 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 30V, the cable uses Polypropylene (PP) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 80C and is approved to NEC Type CM standards. Approximate weight is 220 lbs/MFT with Chart 3 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 9876 have?
Belden 9876 contains 11 individually foil shielded pairs.
What is the voltage rating of Belden 9876?
This cable is rated for 30 volts.
What shielding does Belden 9876 have?
Belden 9876 has individual foil shields on each pair plus an overall Beldfoil shield.
What NEC type is Belden 9876?
Belden 9876 is rated NEC Type CM.
9876
Part Number
9876
Attributes
220
20
Chart 3
Tinned Copper
7/28
22 AWG Stranded Tinned Copper
Polypropylene (PP)
Polyvinylchloride (PVC)
80C
CM
11
7
30
55
10.5O/M'
11.3O/M'
50
0.6
Individually Foil Shielded Pairs
1
Beldfoil
28
2919
0.66
30
