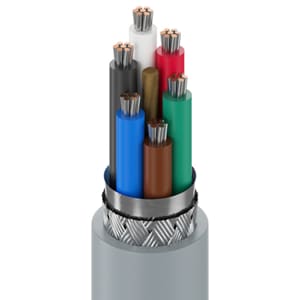

The Belden 9942 is a computer EIA RS-232 cable featuring 22 AWG stranded tinned copper conductors in a 7x30 configuration with semi-rigid PVC insulation. This six-conductor cable is constructed with overall foil plus braid shielding for superior electromagnetic interference protection and a PVC jacket.
The 9942 meets NEC Type CMG standards, making it suitable for computer communication, data transmission, and multi-channel control applications in commercial environments where robust shielding and multiple conductors are required.
Contact our specialists for technical support and pricing.
Discover Belden industrial cables | View complete Belden product line
Frequently Asked Questions
What is Belden 9942 designed for?
Belden 9942 is designed for EIA RS-232 computer communication and data transmission applications requiring six conductors and enhanced electromagnetic interference protection through dual-layer shielding.
How does the foil plus braid shielding work?
The 9942 features both foil and braid shields working together. The foil provides complete coverage against high-frequency interference, while the braid adds mechanical strength and low-frequency shielding for comprehensive electromagnetic protection.
What applications require 6-conductor RS-232 cable?
Six-conductor RS-232 cables like the 9942 are used in computer connections requiring full hardware handshaking, multi-device serial communications, and applications where additional signal or ground conductors are needed beyond basic data transmission.
9942
Part Number
9942
Attributes
6
43.00
22
Chart 1
Tinned Copper
7/30
Semi-Rigid Polyvinylchloride (SR-PVC)
Polyvinylchloride (PVC)
80C
CMG
7
35
63
14.7O/M'
7.9O/M'
0.245
Overall Braid and Foil Shield
100% & 65% Coverage
Beldfoil/ Tinned Copper Braid
30
2464
300
