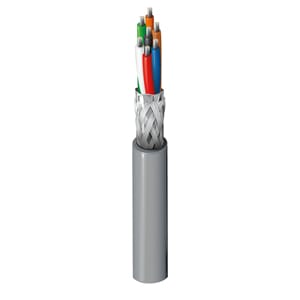

9943
Part Number
9943
Attributes
No. of Cond.
7
Approx LBS/MFT
46
AWG Size
22
Color Code Chart
Chart 1
Cond. Material
Tinned Copper
Conductor Stranding
7/30
Insul. Material
Semi-Rigid Polyvinylchloride (SR-PVC)
Jacket Material
Polyvinylchloride (PVC)
Max. Temp
80C
NEC Type
CMG
No. of Strands
7
Nom. Cap. (C-C)
35
Nom. Cap. (C-SC)
63
Nom. DCR of Cond.
14.7O/M'
Nom. DCR of Shld.
7.0O/M'
Nom. O.D. of Cable (in)
0.245
Shield
Overall Braid and Foil Shield
Shield Coverage
100% & 65% Coverage
Shield Material
Beldfoil/ Tinned Copper Braid
Strand Size
30
UL Style
2464
Voltage
300
