ATS10266210
- Color: Black
- Diameter (in): 15.25
- Height (in): 0.212
- Length (in): 0.35
- Material: Polyamide 6.6 Heat and UV Stabilized
- Max. Bundle Dia. (in): 3.94
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Recommended Application Tool: 102-00000, 102-60000
- Weight per piece (lbs): 0.00069225150326052
- Width (in): 0.31

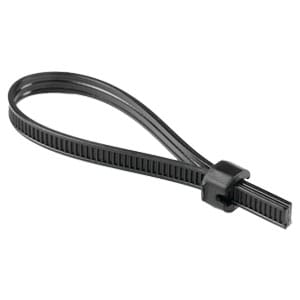

The cable tie closure for the ATS Flex is designed for optimized material utilization. Part number ATS10266210 provides this functionality. This innovative two-piece system consists of a separate strap and closure, eliminating waste and the associated jobsite cleanup.
Available in packages of 5. 000 closures for high-volume applications.
The product is made from Polyamide 6.6 heat and UV stabilized (PA66HSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 3.94"; Bundle Diameter Max. (Metric) 100mm; Bundle Diameter Min. (Metric) 0.0mm; Reel Diameter (Imperial) 15.25"; Reel Diameter (Metric) 387mm.
It is available in a length of 0.35", 9.0mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Recommended cutting tools include 102-00000; 102-60000.
This product is suitable for applications in Solar Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Aerospace Industry; Defence Industry.
Cable Tie Head Height (metric) 5.4mm Cable Tie Head Width (Metric) 8.0mm Height H (Imperial) 0.212" Height H (Metric) 5.4mm Reel Width (Imperial) 3.5" Reel Width (Metric) 88.9mm Releasable Closure No Variant closures on reel Weight per 1 Content Unit without Packaging 0.000314 kg Width W (Imperial) 0.31" Width W (Metric) 8.0mm.
