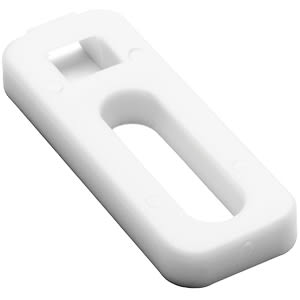

CTAP110C2
- Color: White
- Height (in): 0.15
- Hole Diameter (in): 0.2 x 0.75
- Length (in): 1.34
- Material: Polyamide 6.6
- Max Cable Tie Width: 0.2
- Operating Temp.: -40 to 185F (-40 to 85C)
- Screw Size: #10 (M5)
- Shape: Round
- Width (in): 0.5
HellermannTyton cable tie anchor plates are designed as a"stand-off" mount for perpendicular wire bundles. Part number CTAP110C2 provides this functionality. These mounts offer an elongated mounting hole for easier alignment of wire bundles. The mounts are installed quick and easy by securing a single screw.
Mount provides a"stand-off" for perpendicular bundles. Secures with a single screw providing quick installation.
The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in White (WH) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Mounting Hole Diameter D (Imperial) 0.2 x 0.75"; Mounting Hole Diameter D (Metric) 5.0 x 19.0mm; Mounting Hole Diameter D Max. (Metric) 19.0mm; Mounting Hole Diameter D Min. (Metric) 5.0mm.
It is available in a length of 1.34", 34.0mm.
This product is suitable for applications in Solar Energy Sector;Wind Energy Sector;Rail Transportation Sector;Shipbuilding;Defence Industry.
Cable Tie Width Max. (Imperial) 0.2" Fixation Method Screw Mount For Cable Ties T18 - T50 Height H (Imperial) .15" Height H (Metric) 3.80mm Mounting Hole Shape Round Mounting Screw Type #10 (M5) Screw Width W (Imperial) 0.5" Width W (Metric) 12.7mm.
Order today for reliable performance and quality.
