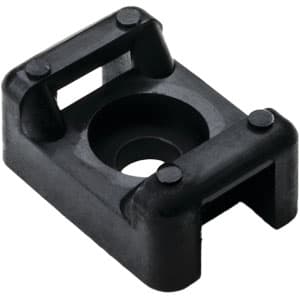

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. Part number CTM30M4 provides this functionality. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3mm width.

KR/CTM series are designed to provide stability to wire bundles. These mounts can accommodate miniature. intermediate. or standard cross-section cable ties. Each mount is secured with a single screw.

The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.195"; Mounting Hole Diameter D (Metric) 5.1mm; Mounting Hole Diameter D Max. (Metric) 5.1mm; Mounting Hole Diameter D Min. (Metric) 5.1mm; Mounting Hole Diameter D2 (imperial) 0.361mm; Mounting Hole Diameter D2 (metric) 9.17mm.

It is available in a length of 0.86", 21.8mm.

Cable Tie Thickness Max. (imperial) 0.07" Cable Tie Thickness max. (metric) 1.9mm Cable Tie Width Max. (Imperial) 0.31" Fixation Method Screw Mount For Cable Ties T18 - T120 Height H (Imperial) 0.37" Height H (Metric) 9.40mm Height H2 (Imperial) 0.21" Height H2 (Metric) 5.33mm Mounting Hole Shape Round Mounting Screw Type #10 (M5) Screw Width W (Imperial) 0.61" Width W (Metric) 15.5mm Width W2 (Imperial) 0.31" Width W2 (Metric) 7.9mm.

Order today for reliable performance and quality.
