D15L4
- Color: Black
- Hole Diameter (in): 0.31
- Length (in): 0.98
- Length L2 (in): 0.39
- Material: Polyacetal
- Max. Bundle Dia. (in): 0.59
- Min. Bundle Dia. (in): 0.59
- Nom. O.D. (in): 1.56
- Nom. Wall Thick. (in): 0.08
- Operating Temp.: -40 to 194F (-40 to 90C)
- Weight per piece (lbs): 0.0083775659630253
- Width (in): 0.59

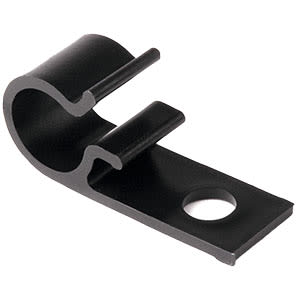

Developed for fixing pipes, cables and hoses, the D-Clips elastic locking system ensures optimal fixing and at the same time, easy removal of the fixed elements by simply pressing the lower latch down and pulling the fixed element. Part number D15L4 provides this functionality.
Available in three sizes. HellermannTyton screw mount clips offer quick. snap-in action. These clips allow for easy release for wiring changes or replacements. saving both time and money.
The product is made from Polyacetal (POM) and is engineered for an operating temperature range of -40F to +194F (-40C to +90C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.59"; Bundle Diameter Max. (Metric) 15.0mm; Bundle Diameter Min. (Imperial) 0.59"; Bundle Diameter Min. (Metric) 15.0mm; Mounting Hole Diameter D (Imperial) 0.31"; Mounting Hole Diameter D (Metric) 8.0mm; Mounting Hole Diameter D Max. (Metric) 8.0mm; Mounting Hole Diameter D Min. (Metric) 8.0mm; Nominal Diameter (Imperial) 1.56"; Nominal Diameter (Metric) 15.0mm, wall thickness 0.08", 2.0mm.
It is available in a length of 0.98", 25.0mm, 0.39", 10.0mm.
This product is suitable for applications in Electronics Industry;Defence Industry.
Fixation Method screw-hole Number of cables/conduits 1.0 Variant Closed Weight per 1 Content Unit without Packaging 0.0038 kg Width W (Imperial) 0.59" Width W (Metric) 15.0mm.
