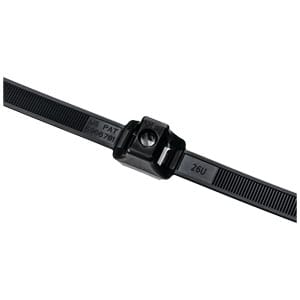

Dual-Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. Part number DCT110HIRK2 provides this functionality. These ties have an optional mounting hole for securing bundles along the chassis of trucks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.

Provides dual separation between bundles to prevent chafing and abrasion. 150lb. tensile strength ensures enough strength for heavy duty applications. Straps are releasable for increased serviceability.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 2.28"; Bundle Diameter Max. (Metric) 58.0mm; Bundle Diameter Min. (Imperial) 0.25"; Bundle Diameter Min. (Metric) 6.4mm; Mounting Hole Diameter D (Imperial) 0.20"; Mounting Hole Diameter D (Metric) 6.2mm; Mounting Hole Diameter D Max. (Imperial) 0.20"; Mounting Hole Diameter D Max. (Metric) 6.2mm; Mounting Hole Diameter D Min. (Imperial) 0.20"; Mounting Hole Diameter D Min. (Metric) 6.2mm; Stud Diameter (Imperial) 1/4"; Stud Diameter (Metric) M6.

It is available in a length of 19.2", 487.68mm.

Tensile strength is rated at 150 lbs, 68.02 kgf, 667 N.

Recommended cutting tools include 110-80003.

This product is suitable for applications in Automotive Industry.

Cable Tie Closure plastic pawl Fixation Method Weld Stud Fixing Height H (Imperial) 0.8" Height H (Metric) 20.32mm Mounting Hole Shape Round Releasable Closure No Thickness T (Imperial) 0.06" Thickness T (Metric) 1.4mm Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.012 kg Width W (Imperial) 0.5" Width W (Metric) 12.7mm Width W2 (Imperial) 0.7" Width W2 (Metric) 19.7mm.

Order today for reliable performance and quality.
