  • Approx LBS/MFT: 277.00
  • Connector Type: Straight Plug
  • Contact Attach (Inner): Spring Finger
  • Contact Attach (Outer): Crimp
  • Coupling Nut: Hex
  • Finish of Body: Alballoy
  • Finish of Pin: Gold
  • Interface: 7-16 DIN Male
  • Length (in): 1.6
  • VSWR Freq. (GHz): <1.25:1 (6)
  • Weight per piece (lbs): 0.277
  • Width (in): 1.38

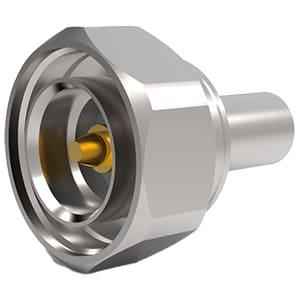

EZ-400-716M-X LMR 400 Connectors for Coax

Our EZ-400-716M-X is part of our Connectors and Termination Line for Coaxial Cables. EZ-400-716M-X has a straight plug connector with a 7-16 DIN male interface, a gold finish on the pin and alballoy finish on the body. The inner contact is attached by spring finger and the outer contact is attached by a crimp with a hex coupling nut. Each piece weighs approximately 0.277 lbs per piece and is 1.6 in. long and 1.38 in. wide and are manufactured by Times Microwave.
