GXL-12 12 Gauge GXL Automotive Primary Wire

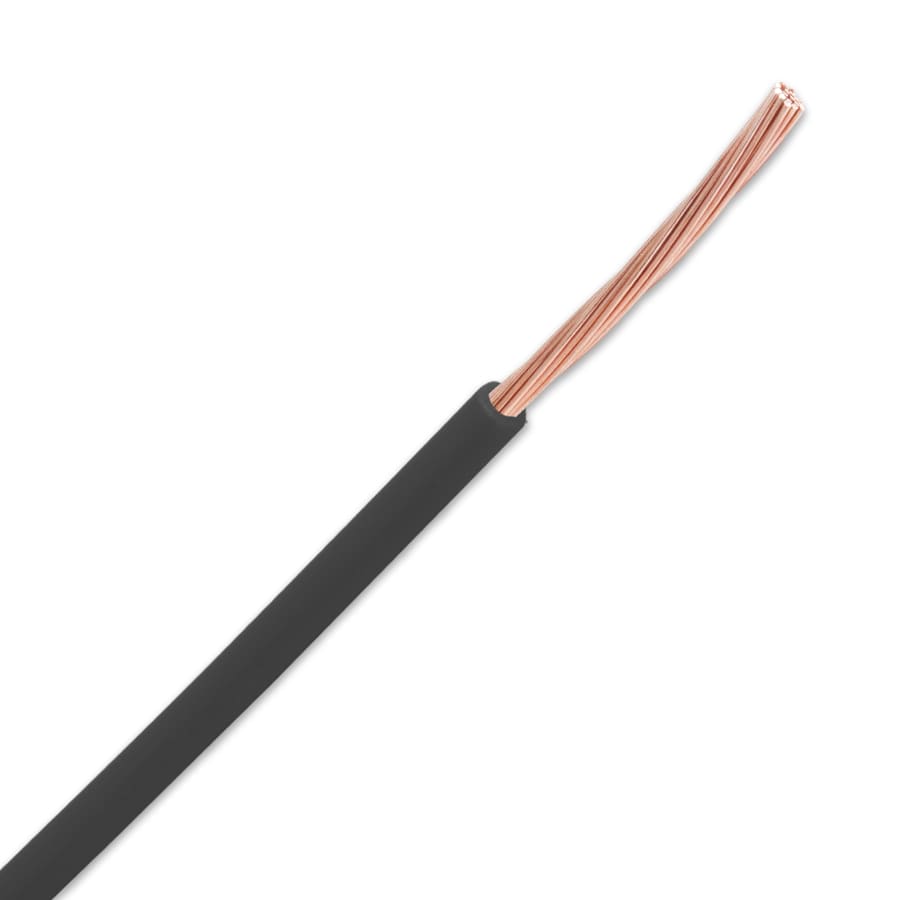

Our GXL-12 12 gauge wire is part of our Automotive Wire & Battery Cable line. GXL-12 is a 12 awg wire made of a 19/25 stranded bare copper conductor with a cross-linked polyethylene (XLPE) insulation. Weighing approximately 24 lbs/MFT, these wires are rated for a temperature range of -40°C to 125°C and is intended for use in engine compartments where higher heat resistance is required. These wires also meet the specifications for Ford and Chrysler.
GXL-12
Part Number
GXL12
Attributes
No. of Cond.
1
Approx LBS/MFT
24.00
AWG Size
12
Chrysler Spec
MS-8900
Cond. Material
Bare Copper
Conductor Stranding
19/25
Copper LBS/MFT
18.5
Ford Spec
M1L-85B
Insul. Material
Cross-Linked Polyethylene (XLPE)
Max. Temp
125C
Min. Temp
-40C
No. of Strands
19
Nom. Insul. Thick. (in)
0.026
Nom. O.D. (in)
0.1410
SAE Spec
SAE J-1128
Strand Size
25
