GXL-12

GXL12
$234.99 / 1000 FT
GXL12
  • Approx LBS/MFT: 24.00
  • AWG Size: 12
  • Chrysler Spec: MS-8900
  • Cond. Material: Bare Copper
  • Conductor Stranding: 19/25
  • Copper LBS/MFT: 18.5
  • Ford Spec: M1L-85B
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 125C
  • Min. Temp: -40C
  • No. of Cond.: 1
  • No. of Strands: 19
  • Nom. Insul. Thick. (in): 0.026
  • Nom. O.D. (in): 0.1410
  • SAE Spec: SAE J-1128
  • Strand Size: 25

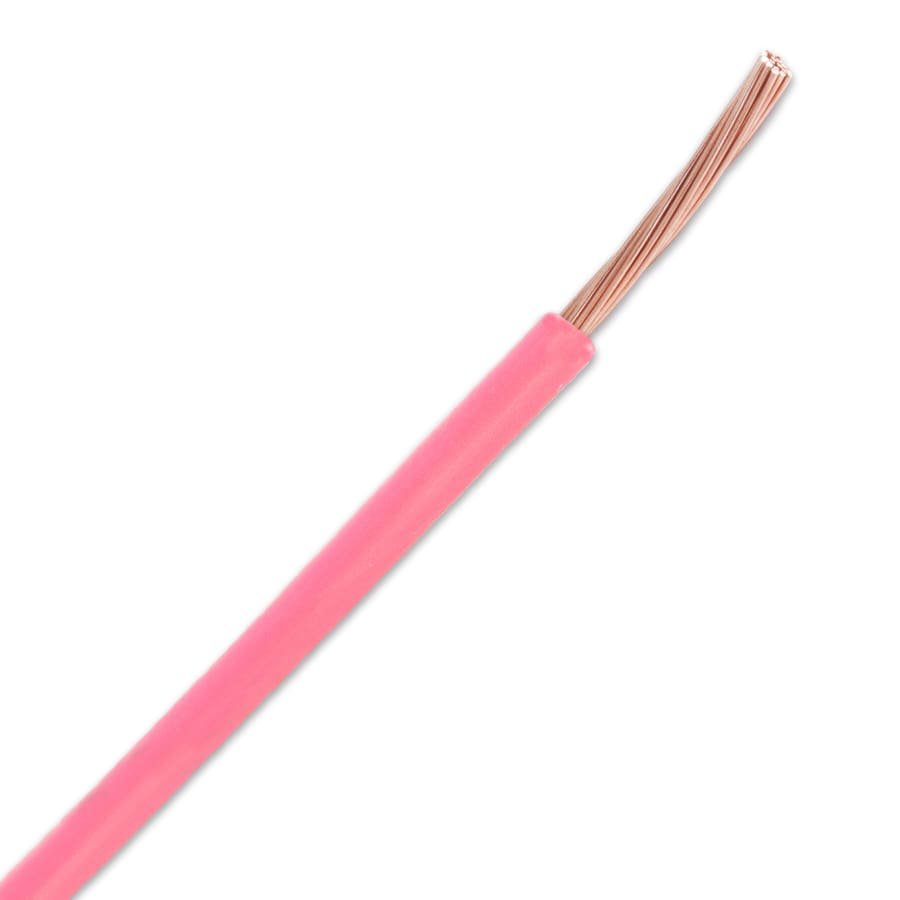

GXL-12 12 Gauge GXL Automotive Primary Wire

Our GXL-12 12 gauge wire is part of our Automotive Wire & Battery Cable line. GXL-12 is a 12 awg wire made of a 19/25 stranded bare copper conductor with a cross-linked polyethylene (XLPE) insulation. Weighing approximately 24 lbs/MFT, these wires are rated for a temperature range of -40°C to 125°C and is intended for use in engine compartments where higher heat resistance is required. These wires also meet the specifications for Ford and Chrysler.

Color
