M22759/41-20

M22759/41-20
$260.99 / 1000 FT
  • Approx LBS/MFT: 4.7, 4.70
  • AWG Size: 20
  • Cond. Material: Nickel-Plated Copper
  • Conductor Stranding: 19/32
  • Insul. Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
  • Jacket Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
  • M27500 Component: SM
  • Max O.D. (in): 0.060
  • Max. Temp: 200C
  • Mil-Spec: M22759/41
  • Min O.D. (in): 0.056
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • SAE Spec: AS22759/41
  • Strand Size: 32
  • Voltage: 600

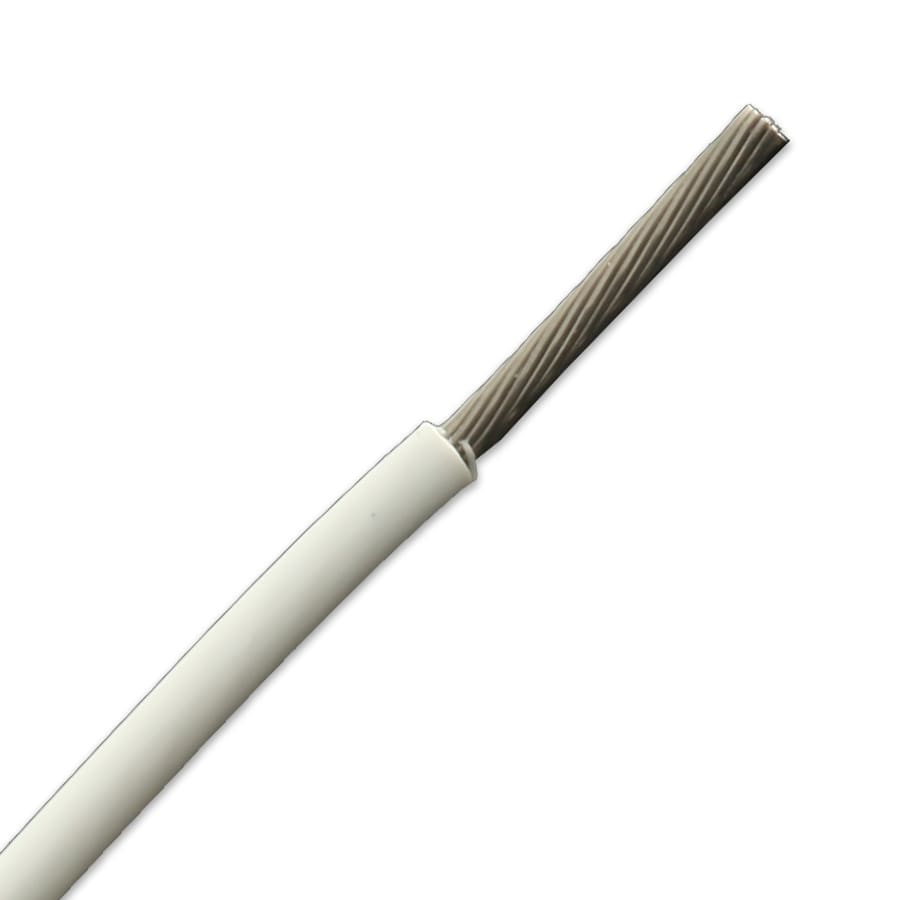

M22759/41-20 20 Gauge MIL-W-22759/41 | SAE AS22759/41 Cable

Our M22759/41-20 20 gauge cable is part of our Mil-Spec Wire and Cable line of Wire and Cable. M22759/41-20 is composed of a 19/32 stranded nickel-plated copper conductor with cross-linked ethylene tetrafluoroethylene (XL-ETFE) insulation and jacket material. These cables are rated for a voltage of 600 volts, have a maximum temperature of 200°C, and weigh approximately 4.7 lbs/MFT. MIL-W-22759/41 wire is suitable for use in aircraft engines and in other military, government, or civilian applications where abrasion is present.
