$334.99 / 1000 FT
  • Approx LBS/MFT: 8.10
  • AWG Size: 20
  • Cond. Material: Nickel-Plated Copper
  • Conductor Stranding: 19/32
  • Insul. Material: Mineral Filled Polytetrafluoroethylene (PTFE)
  • M27500 Component: TA
  • Max O.D. (in): 0.084
  • Max. Temp: 260C
  • Mil-Spec: M22759/8
  • Min O.D. (in): 0.080
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • Nom. Dia. of Cond.: 0.038
  • SAE Spec: AS22759/8
  • Strand Size: 32
  • Voltage: 600

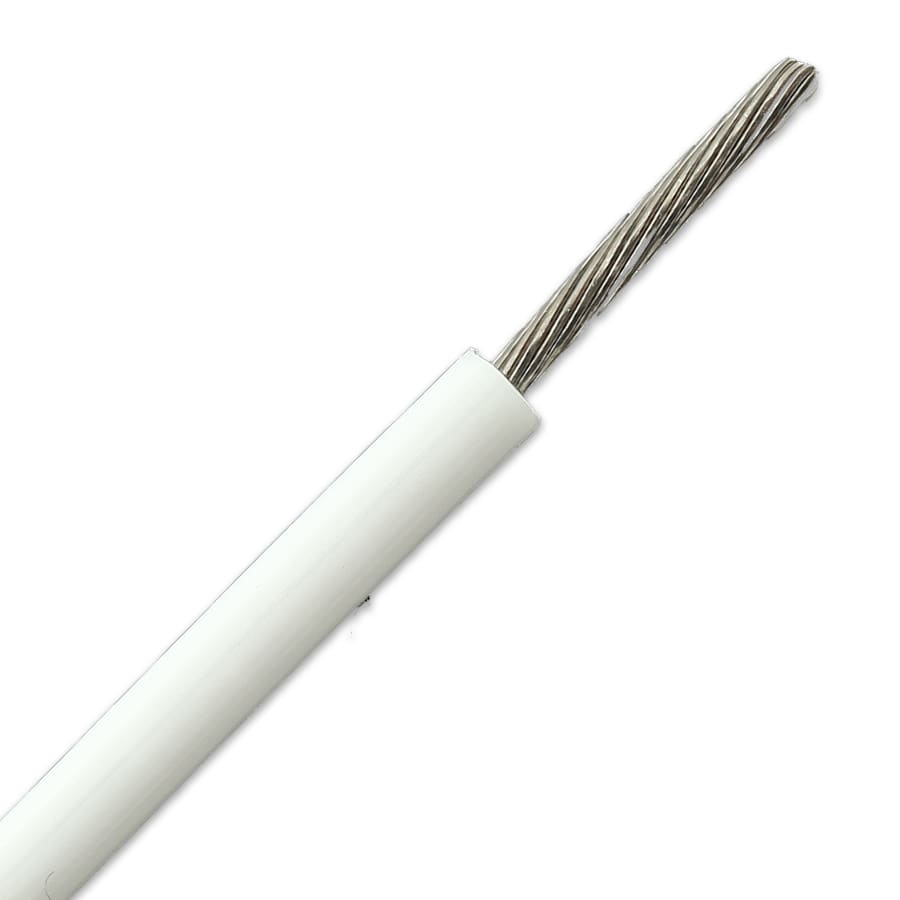

M22759/8-20 — 20 Gauge M22759/8 Mil-Spec Wire

The M22759/8-20 is a reliable wire designed for various applications, featuring a 20 AWG size with an approximate weight of 8.10 pounds per thousand feet. It is constructed with a conductor made of nickel-plated copper and a stranding configuration of 19 strands over 32. The wire is insulated with mineral-filled polytetrafluoroethylene (PTFE), ensuring excellent thermal and electrical properties. Compliant with Mil-Spec M22759/8 and SAE Spec AS22759/8, it has a maximum outer diameter of 0.084 inches and a minimum of 0.080 inches. This wire can operate in a wide temperature range, from -55°C to 260°C, making it suitable for various demanding applications. With a voltage rating of 600, the M22759/8-20 is a versatile and robust choice for electrical and industrial settings where reliable performance is crucial.
