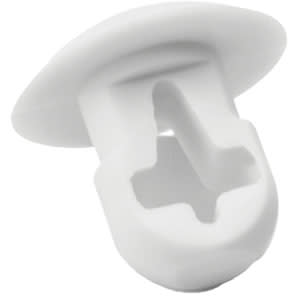

HellermannTyton push mounts are used with our standard cable ties and offer a permanent bundling solution for installation below or underneath a panel. Part number PBM10M4 provides this functionality. Designed for simple installation by pushing the mount through a pre-drilled hole. The low profile"button" style head is suitable in space constrained areas.

Push Mounts. when used with standard cable ties. provide a permanent bundling solution below a panel. The"button" style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.

The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in White (WH) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.25 - 0.26"; Mounting Hole Diameter D (Metric) 6.25 - 6.55mm; Mounting Hole Diameter D Max. (Imperial) 0.26"; Mounting Hole Diameter D Max. (Metric) 6.55mm; Mounting Hole Diameter D Min. (Imperial) 0.25"; Mounting Hole Diameter D Min. (Metric) 6.25mm.

It is available in a length of 10.7mm.

Cable Tie Width Max. (Imperial) 0.2" Fixation Method Push Mount For Cable Ties T18 - T50 Height H (Imperial) .40" Height H (Metric) 10.20mm Height H2 (Imperial) .08" Height H2 (Metric) 2.0mm Maximum Recommended Load (metric) 0.00 kgf Mounting Hole Shape Round Panel Thickness (Imperial) 0.13" Panel Thickness (Metric) 3.2mm Panel Thickness Max. (Imperial) 0.12" Panel Thickness Max. (Metric) 3.0mm Panel Thickness Min. (Imperial) 0.118" Panel Thickness Min. (Metric) 3.0mm Width W (Imperial) 0.26" Width W (Metric) 6.6mm.

Order today for reliable performance and quality.
