SXL-12

SXL12
$207.59 / 1000 FT
  • Approx LBS/MFT: 27.60
  • AWG Size: 12
  • Chrysler Spec: MS-5919
  • Cond. Material: Bare Copper
  • Conductor Stranding: 19/25
  • Copper LBS/MFT: 18.
  • Ford Spec: M1L-85A
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 125C
  • Min. Temp: -51C
  • No. of Cond.: 1
  • No. of Strands: 19
  • Nom. Insul. Thick. (in): 0.037
  • Nom. O.D. (in): 0.1600
  • SAE Spec: SAE J-1128
  • Strand Size: 25

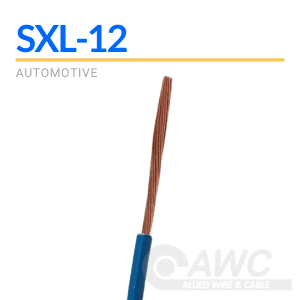

SXL-12 12 Gauge SXL Automotive Primary Wire

Our SXL-12 12 gauge cable is part of our Automotive Wire & Battery Cable line of Wire & Cable. SXL-12 is composed of a 19/25 stranded Bare Copper conductor with Cross-Linked Polyethylene (XLPE) insulation material. These cables have a recommended temperature range of -51°C to 125°C and weigh approximately 27.60 lbs/MFT. Since SXL wire can handle high heat, it is rated SAE J-1128 to be used in engine compartments and also meets the specifications of Ford and Chrysler products.

Color
