T120RDH0H4

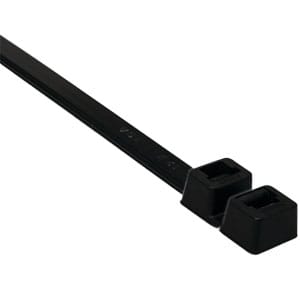

The double head cable tie was designed with a dual locking head that creates two loops to secure two bundles simultaneously. Part number T120RDH0H4 provides this functionality. The head also provides separation between bundles or bundles running parallel to each other. For high volume applications, tensioning tools are available to ensure consistent and safe installation.

The tie contains a dual locking design to secure two bundles at once. Head design can also provide spacing between parallel bundles.

The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter 1st Hole Max. (Imperial) 4.0"; Bundle Diameter 1st Hole Max. (Metric) 101.6mm; Bundle Diameter 2nd Hole Max. (Imperial) 2.0"; Bundle Diameter 2nd Hole Max. (Metric) 50.8mm; Bundle Diameter Max. (Imperial) 4"; Bundle Diameter Max. (Metric) 101.6mm; Bundle Diameter Min. (Imperial) 0.18"; Bundle Diameter Min. (Metric) 4.6mm.

It is available in a length of 15.7", 398.0mm.

Tensile strength is rated at 120.0 lbs, 535.0 N, 120 lbs, 54.56 kgf, 535 N.

Recommended cutting tools include 110-05005; 110-06000; 110-80000; 110-80001; 110-80003; 110-80004; 110-95000.

Releasable Closure No Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.00649 kg Width W (Imperial) 0.3" Width W (Metric) 7.6mm.

Order today for reliable performance and quality.
