TC-240-SM-SS-X

TC-240-SM-SS-X
$13.99 /
TC-240-SM-SS-X
  • Approx LBS/MFT: 16.00
  • Connector Type: Straight, Straight Plug
  • Contact Attach (Inner): Solder
  • Contact Attach (Outer): Crimp
  • Coupling Nut: Hex
  • Finish of Body: Stainless Steel
  • Finish of Pin: Gold
  • Interface: SMA, SMA Male
  • Length (in): 1.0, 1.00
  • Max. Frequency: 6.00
  • Nom. Imp.: 50.00
  • VSWR Freq. (GHz): <1.25:1 (10), <1.30:1 (10)
  • Weight per piece (lbs): 0.016, 0.02
  • Width (in): 0.32

TC-240-SM-SS-X-LMR 240 Connectors

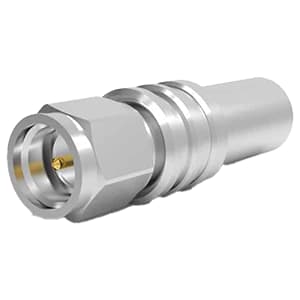

TC-240-SM-SS-X connectors are part of our Connectors and Termination line for Coaxial Cables. The TC-240-SM-SS-X connector has a straight plug with SMA male interface, a gold finish on the pin, and a stainless steel finish on the body. The coupling nut is a hex and the outer contact attach is a crimp.
