$0.00 /
  • Approx LBS/MFT: 350.00
  • Connector Type: Right Angle
  • Contact Attach (Inner): Solder
  • Contact Attach (Outer): Clamp
  • Coupling Nut: Hex
  • Finish of Body: Alballoy
  • Finish of Pin: Silver
  • Interface: 7-16 DIN Male
  • Length (in): 2.4
  • VSWR Freq. (GHz): <1.25:1 (<3)
  • Weight per piece (lbs): 0.35
  • Width (in): 1.88

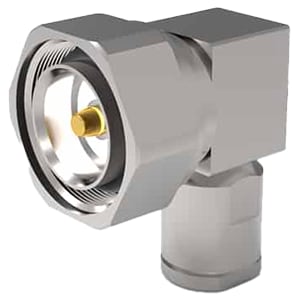

TC-400-716MC-RA LMR 400 Connectors for Coax

Our TC-400-716MC-RA is part of our Connectors and Termination Line for Coaxial Cables. TC-400-716MC-RA has a right angle connector with a 7-16 DIN male interface, a silver finish on the pin and alballoy finish on the body. The inner contact is attached by solder and the outer contact is attached by a clamp with a hex coupling nut. Each piece weighs approximately 0.35 lbs per piece and is 2.4 in. long and 1.88 in. wide and are manufactured by Times Microwave.
