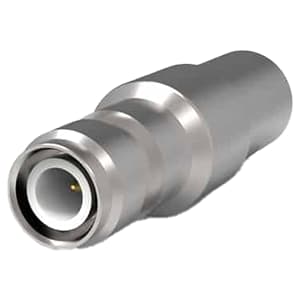

TC-400-TF-RP LMR 400 Connectors for Coax
Our TC-400-TF-RP is part of our Connectors & Termination Line for Coaxial Cables. TC-400-TF-RP has a reverse polarity connector with a TNC female interface, a gold finish on the pin and nickel finish on the body. The inner contact is attached by solder and the outer contact is attached by a crimp. Each piece weighs approximately 0.074 lbs per piece and is 1.8 in. long and 0.55 in. wide and are manufactured by Times Microwave.
TC-400-TF-RP
Part Number
TC-400-TF-RP
Attributes
Approx LBS/MFT
74.00
Connector Type
Reverse Polarity, Straight
Contact Attach (Inner)
Solder
Contact Attach (Outer)
Crimp
Finish of Body
Nickel
Finish of Pin
Gold
Interface
TNC, TNC Female
Length (in)
1.8, 1.80
Max. Frequency
2.50
Nom. Imp.
50.00
VSWR Freq. (GHz)
<1.25:1 (2.5)
Weight per piece (lbs)
0.07, 0.074
Width (in)
0.55
