$0.00 /
  • Approx LBS/MFT: 99.00
  • Connector Type: Straight Plug
  • Contact Attach (Inner): Solder
  • Contact Attach (Outer): Crimp
  • Coupling Nut: Hex/Knurl
  • Finish of Body: Alballoy
  • Finish of Pin: Gold
  • Interface: N Male
  • Length (in): 1.8
  • VSWR Freq. (GHz): <1.35:5 (6)
  • Weight per piece (lbs): 0.099
  • Width (in): 0.87

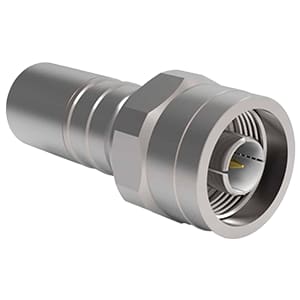

TC-500-NMH-X LMR 500 Connectors for Coaxial Cables

Our TC-500-NMH-X connectors are part of our Connectors and Termination line for Coaxial Cables. TC-500-NMH-X has a straight plug connector with an N male interface, a gold finish on the pin, and an alballoy finish on the body. The inner contact is attached by solder while the outer contact is attached by a crimp with a hex/knurl coupling nut. Each piece weighs approximately 0.099 lbs. and is 1.8 in. long and 0.87 in. wide.
