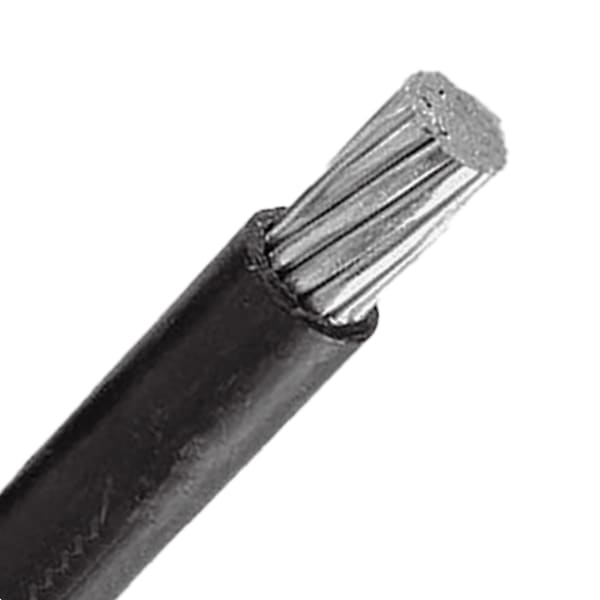

XHHW 6 7 AL 6 Gauge XHHW Aluminum Wire
Discover the XHHW 6 7 AL 6 gauge wire, a reliable choice in our Hook Up Wire / Lead Wire line. This 6 AWG wire features a stranded aluminum alloy conductor with black XLPE insulation, weighing 42 lbs/MFT. It has a conductor stranding of 7 and a nominal outer diameter of 0.262 inches. Approved for conduit or raceways per NEC standards, it's abrasion, heat, and moisture resistant. Rated at 600 volts and 90C, this XHHW wire is ideal for circuit wiring. Order now from Allied Wire & Cable!
XHHW 6 7 AL
Part Number
XHHW 6 7 AL
Attributes
No. of Cond.
1
Approx LBS/MFT
42.00
AWG Size
6
Cond. Material
Aluminum Alloy
Conductor Stranding
7
Insul. Material
Cross-Linked Polyethylene (XLPE)
Max. Temp
90C
No. of Strands
7
Nom. Insul. Thick. (in)
0.045
Nom. O.D. (in)
0.2620
UL Style
XHHW-2
Voltage
600
