CMP Rated, 22 AWG Plenum Twisted Pairs

7 items

Belden Cable
6541PA
Approx LBS/MFT27
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

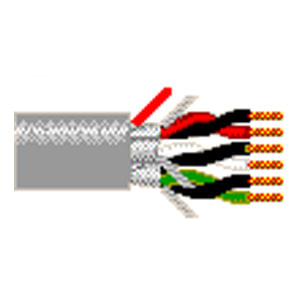

6542PA
Approx LBS/MFT36
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote
Belden Cable

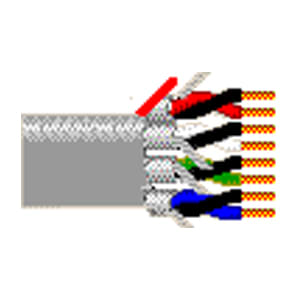

6543PA
Approx LBS/MFT45
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

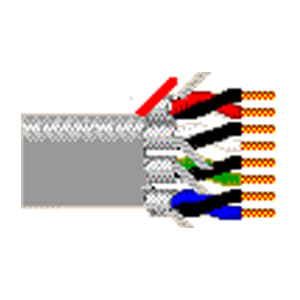

6545PA
Approx LBS/MFT60
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote
Belden Cable

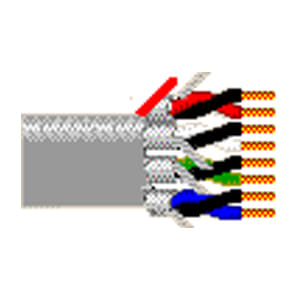

6546PA
Approx LBS/MFT85
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

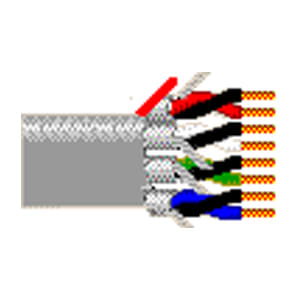

6548PA
Approx LBS/MFT125
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

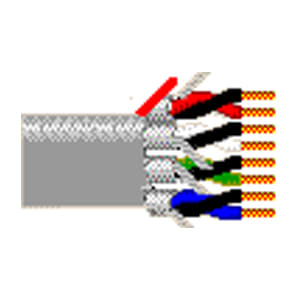

6549PA
Approx LBS/MFT162
AWG Size22
Color Code ChartChart 3
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Jacket Thickness0.017
Requires Quote

Belden Plenum Multi-Pair 22 AWG Snake Cable Specifications

Plenum Snake Cable Construction:

  • Conductor: Stranded Tinned or Bare Copper
  • Insulation: FEP
  • Shielding: Twisted Pairs are Individually Beldfoil Shielded
  • Jacketing: Overall Jacket Varies (FEP, Flamarrest, or PVDF)
  • Drain Wire: 22 AWG Tinned Copper
  • Sizes Available: 22 AWG

Plenum Snake Cable Ratings and Approvals:

  • NEC: TypeCMP
  • CEC: Type CMP FT6
  • Nominal OD Conductor: .030 inches
  • Nominal OD Insulation: .050 inches
  • Voltage Rating: 300V RMS
  • Temperature Rating: 200°C (FEP-jacketed), 150°C (PVDF-jacketed), or 60°C (Flamarrest-jacketed)
  • For more information, see full product specs.
