CMR Rated, 22 AWG Twisted Pairs

19 items

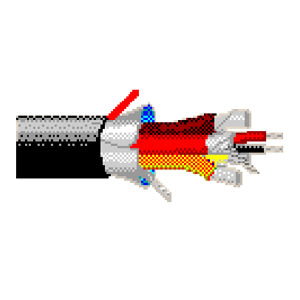

1408r
Approx LBS/MFT73
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
1409r
Approx LBS/MFT100
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
1410r
Approx LBS/MFT122
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
1411r
Approx LBS/MFT175
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote

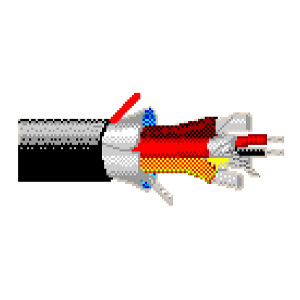

1412r
Approx LBS/MFT232
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT

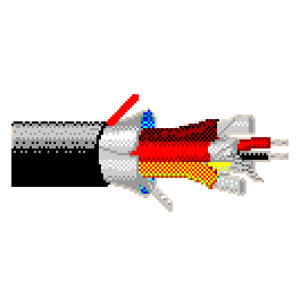

1413r
Approx LBS/MFT293
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
1414r
Approx LBS/MFT374
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote per FT
1415r
Approx LBS/MFT397
AWG Size24
Color Code ChartRed, Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire18 AWG Tinned Copper
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote

Belden Individually Shielded and Jacketed Twisted Multi-Pair Snake Cable Specifications

Multi-Pair Snake Cable Construction:

  • Conductor: Stranded Tinned Copper
  • Insulation: Polyolefin
  • Shielding: Twisted Pairs are Individually Beldfoil Shielded, Overall Beldfoil Shield
  • Jacketing: Numbered and Color-Coded PVC Inner Jackets, Overall Black PVC Jacket
  • Drain Wire: 18 AWG Tinned Copper
  • RipCord: Nylon
  • Color Code: Red, Black
  • Pair shields and jackets are bonded to allow for simultaneous stripping with automated stripping equipment
  • Sizes Available: 24 AWG

Multi-Pair Snake Cable Ratings and Approvals:

  • NEC: Type CMR
  • CEC: Type CMG FT4
  • Nominal OD Conductor: .024 inches
  • Nominal OD Insulation: .040 inches
  • Inner Pair Jacket OD: .111 inches
  • Voltage Rating: 300V RMS
  • Temperature Rating: 75°C
  • Nominal Impedance: 50 ohms
  • Nominal Velocity of Propagation: 66%
  • Nominal Capacitance:
    • Between Conductors: 31 pF/Ft
    • Between Conductors/Shield: 58 pF/Ft
