11 items

  • $0.00 /
    • Approx LBS/MFT: 46
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 72
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 /
    • Approx LBS/MFT: 102
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 124
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 178
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 241
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 288
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List
  • $0.00 /
    • Approx LBS/MFT: 371
    • AWG Size: 24
    • Color Code Chart: Red, Black
    Order
    Add to List

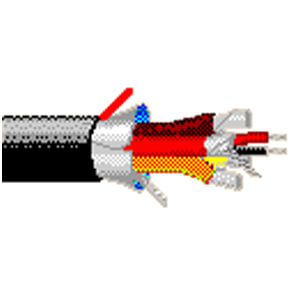

Belden Flexible CM Multi-Pair 24 AWG Snake Cable Specifications

Flexible CM Multi-Pair Snake Cable Construction:

  • Conductor: Stranded Tinned Copper
  • Insulation: Polyolefin
  • Shielding: Twisted Pairs are Individually Beldfoil Shielded, Overall Beldfoil Shield
  • Jacket: Numbered and Color-Coded Inner PVC jackets, Overall Matte Black PVC Jacket
  • Drain Wire: 24 AWG Tinned Copper
  • RipCord: Nylon
  • Inner shields and jackets are bonded for simultaneous stripping
  • Color Code: Red, Black
  • Sizes Available: 24 AWG

Flexible CM Multi-Pair Snake Cable Ratings and Approvals:

  • NEC: CM
  • CEC: CM
  • Nominal OD Conductor: .024 inches
  • Nominal OD Insulation: .040 inches
  • Inner Pair Jacket OD: .111 inches
  • Voltage Rating: 300V RMS
  • Temperature Rating: 75°C
  • Nominal Impedance: 50 ohms
  • Nominal Velocity of Propagation: 66%
  • Nominal Capacitance:
    • Between Conductors: 31 pF/Ft
    • Between Conductors/Shield: 58 pF/Ft
