75 Ohm Coax

7 items

Belden Cable
83267
Approx LBS/MFT11
AWG Size30
Cond. MaterialSilver-Plated Copper-Covered Steel
Conductor Stranding7/38
Dielectric (in)0.063
Dielectric MaterialTFE Teflon
Jacket MaterialTetrafluoroethylene (TFE) Tape
Max. Temp200C
Requires Quote per FT

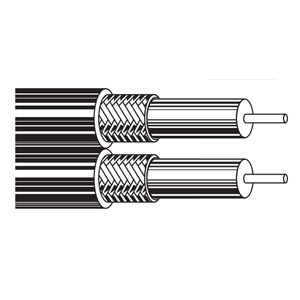

Belden Cable
89555
Approx LBS/MFT90
AWG Size23
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.134
Dielectric MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFluorinated Ethylene Propylene (FEP)
Max. Temp200C
Requires Quote per FT

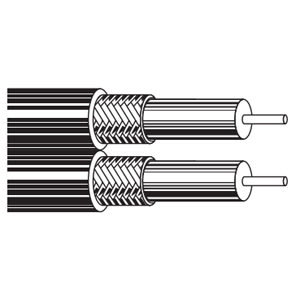

Belden Cable
9555
Approx LBS/MFT78
AWG Size23
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.146
Dielectric MaterialFlame-Retardant Semi-Foam Polyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote per FT
Belden Cable
3131A
Approx LBS/MFT41.00
AWG Size18
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.180
Dielectric MaterialGas-Injected Foam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
Requires Quote
Belden Cable
3132A
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.17
Dielectric MaterialFoam Fluorinated Ethylene Propylene (FFEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Max. Temp150C
Requires Quote
Belden Cable
3094A
Approx LBS/MFT0.00
AWG Size14
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.280
Dielectric MaterialGas-Injected Foam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
NEC TypeCL2R/CMR
Requires Quote
Belden Cable
3095A
Approx LBS/MFT0.00
AWG Size14
Cond. MaterialBare Copper-Covered Steel
Conductor Strandingsolid
Dielectric (in)0.280
Dielectric MaterialFoam Fluorinated Ethylene Propylene (FFEP)
Jacket MaterialPolyvinylidene Fluoride (PVDF)
Max. Temp150C
Requires Quote

Belden 75 Ohm Coax Cable (RG187AU, RG59U, RG6U, RG11U, and MIL-C-17D) Specifications

75 Ohm Coax Construction (see part info for details):

  • Conductor: Silver-Plated Copper-Covered Steel or Bare Copper-Covered Steel
  • Insulation: TFE Teflon, Flame-Retardant Semi-Foam Polyethylene, FEP, Gas-Injected Foam Polyethylene, or Foam FEP
  • Jacket: Fluorocopolymer, PVC, FEP, or TFE Tape
  • Shield: Silver-Plated Copper Braid, Bare Copper Braid, or Duobond IV Quad Shield

75 Ohm Coax Ratings and Approvals:

  • RG187 AU, MIL-C-17D: 200°C
  • Dual RG59U :
    • Plenum-Rated: 200°C
    • Non-Plenum: 80°C
  • RG6U :
    • Plenum-Rated: 150°C
    • Non-Plenum: not specified
  • RG 11U :
    • Plenum-Rated: 150°C
    • Non-Plenum: not specified
  • UL AWM Style 20063: 300V, 80°C (select parts only)
  • NEC and CEC ratings vary, see part info
  • RG187A/U Part Passes VW-1 Flame Test
  • 75 Ohm Cable

75 Ohm Coaxial Cable Applications:

  • Plenum-Rated 75 Ohm Cables are suitable for outdoor applications and direct burial applications.
