Belden Cable
1520A
Approx LBS/MFT50
AWG Size30
Cond. MaterialTinned Copper
Conductor Stranding7/38
Dielectric (in)0.056
Dielectric MaterialFoam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT
Belden Cable
1521A
Approx LBS/MFT60
AWG Size30
Cond. MaterialTinned Copper
Conductor Stranding7/38
Dielectric (in)0.056
Dielectric MaterialFoam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT
Belden Cable
1522A
Approx LBS/MFT67
AWG Size30
Cond. MaterialTinned Copper
Conductor Stranding7/38
Dielectric (in)0.056
Dielectric MaterialFoam High-Density Polyethylene (HDPE)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp60C
Requires Quote per FT

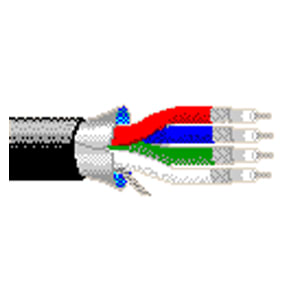

Belden Mini Bundled RGB Cable (UL 1354, NEC Type CL2) Specifications

Mini RGB Cable Ratings and Approvals:

  • UL AWM Style 1354: 30V, 60°C
  • NEC Type CL2 Cable

Mini RGB Cable Construction:

  • Conductor: 30 AWG Stranded Tinned Copper
  • Insulation: Foam High-Density Polyethylene (HDPE)
  • Jackets:
  • Inner Polyvinylchloride (PVC) Jackets
  • Overall Black Polyvinylchloride (PVC) Jacket
  • Shield:
  • Coaxes: Duofoil (100% Coverage) and Tinned Copper Braid (90% Coverage)
  • Overall: Beldfoil Shield (100% Coverage)
