These Belden Teck 90 cables are suitable for use in hazardous environments, including those in the paper and pulp, mining, chemical, and petroleum industries. Other applications for the Belden Tech 90 control cables include exposed or concealed wiring in wet or dry conditions and in commercial buildings. They also have approval for use in ventilated, non-ventilated, and ladder-type tray cable applications in wet or dry conditions, and for use on walls or beams and in direct burial applications as well. These CSA Control Cables also offer corrosion, moisture, heat, impact, and crush Resistance.

72 items

Belden 600V & 1000V Teck90 CSA Control Cable Specifications

Teck90 CSA Cable Ratings and Approvals:

  • CSA C22.2 #131
  • CSA C22.2 #0.3 Clause 4.31 Low Acid Gas
  • FT4 Flame Test
  • Voltage Rating: 600V or 1000V
  • Temperature Rating: -40°C to 90°C Dry or Wet
  • Installed: -25°C

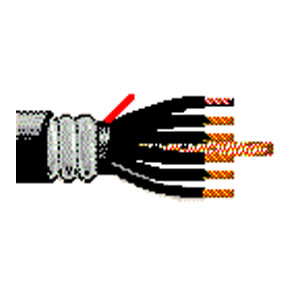

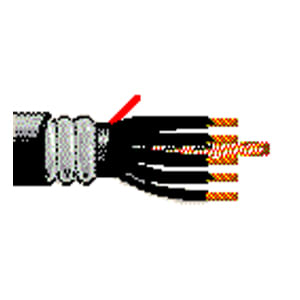

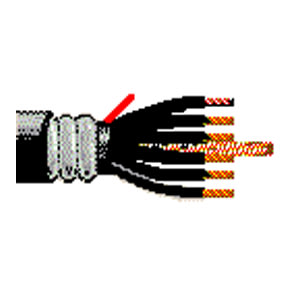

Teck90 CSA Cable Construction:

  • Conductor: Stranded Bare Copper
  • Insulation: XLPE
  • Inner Jacket: PVC
  • RipCord for Inner Jacket
  • Outer Jacket: Black PVC
  • Armor: Interlocked Aluminum
  • Ground Wire: Bare Copper

Teck90 CSA Cable Features and Benefits:

  • High Tensile Strength
  • Excellent Elongation
  • Good Low-Temperature Properties
  • High Insulation Resistance
  • Low Dielectric Loss
  • High Dielectric Strength
  • Flexibility
  • Does Not Require Conduit or Ducts, Saving Money
