12 items
-
0.00 /
- AWG Size: 14
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 12
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 10
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 8
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 6
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 4
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 2
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
-
0.00 /
- AWG Size: 1
- Color Code Chart: Black, Numbered
- Cond. Material: Bare Copper
Belden 1000V VFD Control Cable Specifications
VFD Cable Ratings and Approvals:
- CSA C22.2 #38 Type TC
- CSA C22.2 #230 Type TC
- Flammability: CSA FT4 70,000 BTU Flame Test
- Temperature Rating: 90°C Dry and Wet
- Cold Bend: -40°C
- Cold Impact: -25°C
- Installation Temperature: -25°C
- Rated for direct burial
- Sunlight/UV resistant

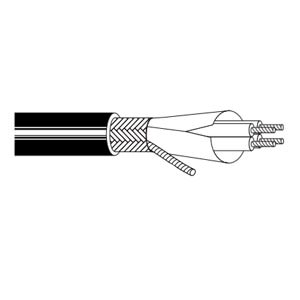

VFD Cable Construction:
- 14 to 2 AWG:
- Conductors: 3 Stranded Bare Copper Circuit Conductors and 1 Full-Sized PVC Insulated Ground (RW90 Circuit Conductors)
- Insulation: XLPE
- Shielding: Overall Beldfoil (100% Coverage) and Tinned Copper Braid (85% Coverage)
- Jacket: Black Sunlight and Oil-Resistant PVC
- Drain Wire: Full-Sized Tinned Copper

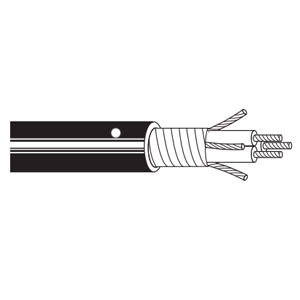

- 1 to 4/0 AWG:
- Conductors: 3 Stranded Bare Copper Circuit Conductors and 3 Symmetrical Bare Copper Grounds (XHHW-2 Circuit Conductors)
- Insulation: XLPE
- Shielding: 2 Spiral Copper Tape Shields
- Jacket: Black Sunlight and Oil-Resistant PVC
