VFD Cable, 1000V

12 items

29558
Belden Cable
29558
AWG Size1/0
Cond. MaterialBare Copper
Conductor Stranding19
CSA TypeTC
Dielectric MaterialPolyvinylchloride (PVC)
Max. Temp90C
No. of Cond.3
No. of Strands19
Requires Quote
Quote Only
29559
Belden Cable
29559
AWG Size2/0
Cond. MaterialBare Copper
Conductor Stranding19
CSA TypeTC
Dielectric MaterialPolyvinylchloride (PVC)
Max. Temp90C
No. of Cond.3
No. of Strands19
Requires Quote
Quote Only

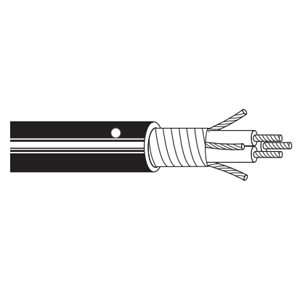

29560
Belden Cable
29560
AWG Size3/0
Cond. MaterialBare Copper
Conductor Stranding19
CSA TypeTC
Dielectric MaterialPolyvinylchloride (PVC)
Max. Temp90C
No. of Cond.3
No. of Strands19
Requires Quote
Quote Only
29561
Belden Cable
29561
AWG Size4/0
Cond. MaterialBare Copper
Conductor Stranding19
CSA TypeTC
Dielectric MaterialPolyvinylchloride (PVC)
Max. Temp90C
No. of Cond.3
No. of Strands19
Requires Quote
Quote Only

Belden 1000V VFD Control Cable Specifications

VFD Cable Ratings and Approvals:

  • CSA C22.2 #38 Type TC
  • CSA C22.2 #230 Type TC
  • Flammability: CSA FT4 70,000 BTU Flame Test
  • Temperature Rating: 90°C Dry and Wet
  • Cold Bend: -40°C
  • Cold Impact: -25°C
  • Installation Temperature: -25°C
  • Rated for direct burial
  • Sunlight/UV resistant

VFD Cable Construction:

  • 14 to 2 AWG:
    • Conductors: 3 Stranded Bare Copper Circuit Conductors and 1 Full-Sized PVC Insulated Ground (RW90 Circuit Conductors)
    • Insulation: XLPE
    • Shielding: Overall Beldfoil (100% Coverage) and Tinned Copper Braid (85% Coverage)
    • Jacket: Black Sunlight and Oil-Resistant PVC
    • Drain Wire: Full-Sized Tinned Copper
  • 1 to 4/0 AWG:
    • Conductors: 3 Stranded Bare Copper Circuit Conductors and 3 Symmetrical Bare Copper Grounds (XHHW-2 Circuit Conductors)
    • Insulation: XLPE
    • Shielding: 2 Spiral Copper Tape Shields
    • Jacket: Black Sunlight and Oil-Resistant PVC
