600V ACIC Cable Armored Pairs & Triads

42 items

24519
Belden Cable
24519
Approx LBS/MFT673
Armor MaterialAluminum
AWG Size18
Color Code ChartBlack, White, Red
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote

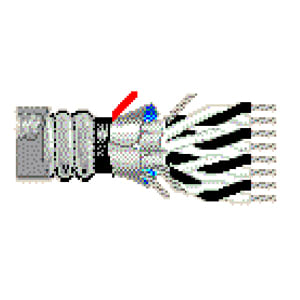

24520
Belden Cable
24520
Approx LBS/MFT1169
Armor MaterialAluminum
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote
25500
Belden Cable
25500
Approx LBS/MFT276
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White, Red
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote

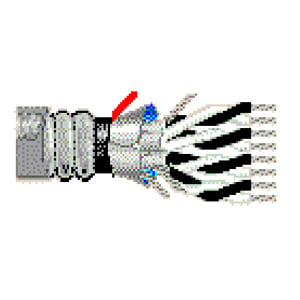

25501
Belden Cable
25501
Approx LBS/MFT1092
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote

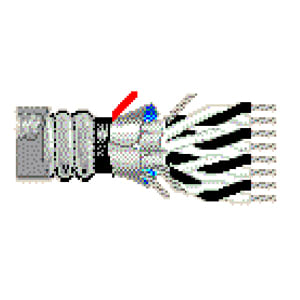

25503
Belden Cable
25503
Approx LBS/MFT0.00
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote

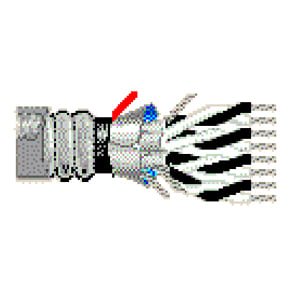

25505
Belden Cable
25505
Approx LBS/MFT829
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote
25506
Belden Cable
25506
Approx LBS/MFT257
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote
25514
Belden Cable
25514
Approx LBS/MFT387
Armor MaterialSteel
AWG Size18
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
CSA TypeACIC
Dielectric MaterialPolyvinylchloride (PVC)
Requires Quote

Belden 600V ACIC Instrumentation Cable (Pairs and Triads) Specifications

Belden ACIC Cable Ratings and Approvals:

  • CSA C22.2 #239 Type ACIC
  • CSA C22.2 #174 HLABCD
  • CSA C22.2 #0.3 Clause 4.31 Low Acid Gas
  • FT4 Flame Test
  • Voltage Rating: 600V
  • Temperature Rating: -40°C to 105°C (75°C Wet)
  • Installed: -25°C

Belden ACIC Cable Construction:

  • Conductor: Stranded Tinned Copper
  • Insulation: PVC
  • Inner Jacket: PVC
  • Outer Jacket: Chrome PVC
  • Armor: Interlocked
  • Shielding: Individual Beldfoil and Polyester Isolation Tape, Overall Beldfoil (100% Coverage)
