Approx LBS/MFT16
AWG Size22
Color Code ChartGreen, Red, Yellow, Black
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.025

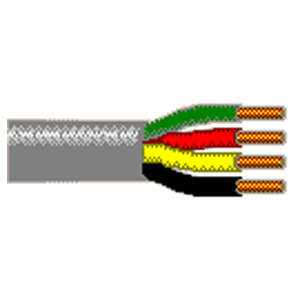

Non-Plenum Audio, Control and Instrumentation Cables Bare Copper Conductors
4 items
Approx LBS/MFT21
AWG Size22
Color Code ChartGreen, Red, Yellow
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.022
Approx LBS/MFT17
AWG Size22
Color Code ChartRed, Green
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.022
Approx LBS/MFT25
AWG Size22
Color Code ChartGreen, Red, Yellow, Black
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyethylene (PE)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.025
Belden Bare Copper Non-Plenum Audio, Control, and Instrumentation Cable Specifications
Belden Non-Plenum Instrumentation Cable Approvals and Ratings:
- UL AWM Style 2092: 60°C, 300V
- UL AWM Style 2093: 60°C, 300V
- UL AWM Style 2094: 60°C, 300V
- NEC Type CM
Belden Non-Plenum Instrumentation Cable Construction:
- Conductor: Bare Copper
- Insulation: Polyethylene (PE)
- Jacket: Polyvinylchloride (PVC)
