5 items
-
-
$0.00 /
- Approx LBS/MFT: 18
- AWG Size: 22
- Color Code Chart: Black, Red, White, Green
-
-
$0.00 / 1000 FT
- Approx LBS/MFT: 22
- AWG Size: 18
- Color Code Chart: Black, Red
-
$0.00 / 1000 FT
- Approx LBS/MFT: 36
- AWG Size: 18
- Color Code Chart: Black, Red, White, Green

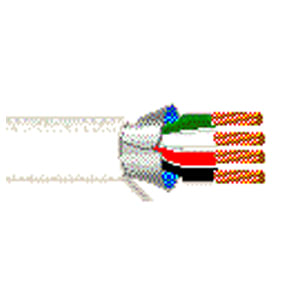

Belden Plenum Shielded Multi-Conductor Cable (CMP Rated FT6) Specifications
CMP Cable Construction:
- Conductors: Stranded Bare Copper
- Insulation: FEP
- Shield: Overall Beldfoil Tape (Foil Side Out) with Drain Wire
- Jacket: Flamarrest
- Jacket Color: Natural
- RipCord
- Sequential Footage Markings Every 2 ft.
CMP Control Cable Ratings and Approvals:
- NEC Rating: CMP
- CEC Rating: CMP FT6
- NEC Article: 800
- Voltage Rating: 300V
- Temperature Rating: 75°C
CMP Control Cable Applications:
- Plenum Use
- Professional Audio Systems
- Intercom and PA Systems
- Security Systems
