Non-Plenum Twisted Pair Cable

5 items

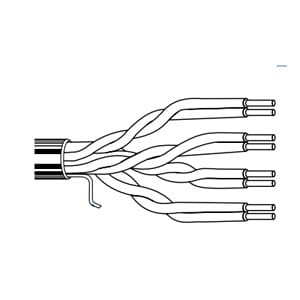

Belden Cable
1500A
Approx LBS/MFT23
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote

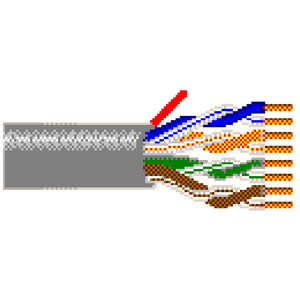

Belden Cable
1500R
Approx LBS/MFT24
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote
Belden Cable
1583A
Approx LBS/MFT21
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote per FT

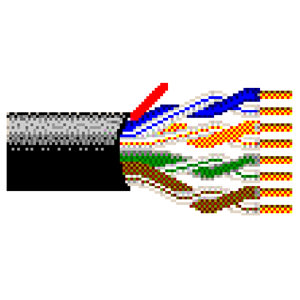

Belden Cable
1583R
Approx LBS/MFT22
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote

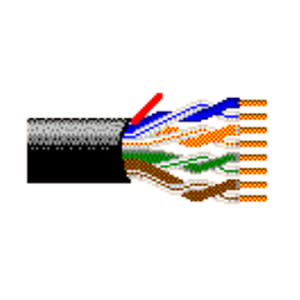

Belden Cable
7881A
Approx LBS/MFT30
AWG Size24
Color Code ChartWhite/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyolefin (PO)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp80C
Requires Quote

Belden Non-Plenum UTP CCTV Cable with Twisted Pairs Specifications

UTP CCTV Cable Construction:

  • Conductor: Solid Bare Copper
  • Insulation: Polyolefin
  • Configuration: Unshielded Twisted Pairs
  • Jacket: Polyvinylchloride (PVC)
  • RipCord
  • Sequential Footage Markings Every 2 ft.

UTP CCTV Cable Ratings and Approvals:

  • NEC Ratings: CM or CMR
  • CEC Ratings: CM FT1 or CMR FT4
  • Nominal Impedance: 100 ohms
  • Temperature Rating: 80°C

UTP CCTV Cable Applications:

  • 100BaseTX
  • 100BaseVG ANYLAN
  • 155ATM
  • 622ATM
  • AES/EBU
  • Digital Video, RS-422
  • Gigabit Ethernet
  • NTSC/PAL Component or Composite Video
  • Premise Horizontal Cable
  • CCTV UTP
  • Pan/Tilt/Zoom (PTZ)
