PTFE Spaghetti Tubing

PTFE spaghetti tubing is engineered for demanding wire insulation applications where superior thermal, chemical, and mechanical properties are critical. With strong search interest in specialty tubing like spaghetti tubing, this product offers reliable performance for industries requiring high temperature and chemical resistance.

The tubing’s versatility in electrical and electronic systems, along with its availability in heavy wall, light wall, standard wall, and thin wall options, makes it a preferred solution for professionals seeking robust wire management and protection.

90 items

tft2000 na005
Alpha Wire
TFT2000 NA005
Additional RatingsASTM D 3295
Approx LBS/MFT1.6
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.342"
Quantity100 FT
Starting at 962.04 Lead Time: 34 days
tft2001 na005
Alpha Wire
TFT2001 NA005
Additional RatingsASTM D 3295
Approx LBS/MFT1.2
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.305"
Quantity100 FT
Starting at 2,068.23 Lead Time: 34 days
tft20010 na002
Alpha Wire
TFT20010 NA002
Additional RatingsASTM D 3295
Approx LBS/MFT5
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.112"
Quantity500 FT
Starting at 1,331.53 Lead Time: 34 days
tft20010 na005
Alpha Wire
TFT20010 NA005
Additional RatingsASTM D 3295
Approx LBS/MFT5
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.112"
Quantity100 FT
Starting at 281.39 Lead Time: 34 days
tft20011 na002
Alpha Wire
TFT20011 NA002
Additional RatingsASTM D 3295
Approx LBS/MFT4
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.101"
Quantity500 FT
Starting at 1,250.12 Lead Time: 34 days
tft20011 na005
Alpha Wire
TFT20011 NA005
Additional RatingsASTM D 3295
Approx LBS/MFT4
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.101"
Quantity100 FT
Starting at 259.62 Lead Time: 34 days
tft20012 na002
Alpha Wire
TFT20012 NA002
Additional RatingsASTM D 3295
Approx LBS/MFT4
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.091"
Quantity500 FT
Starting at 1,117.15 Lead Time: 34 days
tft20012 na005
Alpha Wire
TFT20012 NA005
Additional RatingsASTM D 3295
Approx LBS/MFT4
ColorNatural
MaterialPTFE
Max. Temp260C
Min. Temp-65C
Nom. I.D. (in)0.091"
Quantity100 FT
Starting at 237.05 Lead Time: 34 days

What is PTFE Spaghetti Tubing?

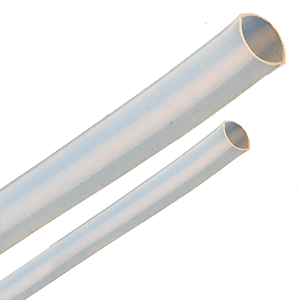

PTFE spaghetti tubing is a flexible, thin-walled fluoropolymer sleeve designed for insulating and protecting individual wires and components. Renowned for exceptional resistance to heat, chemicals, and abrasion, this tubing is ideal for high-reliability environments.

Applications

  • Aerospace and Defense: Wire harness protection in high-temperature zones
  • Electronics: Insulating leads and terminals in circuit boards
  • Medical Devices: Chemical-resistant covering for sensitive instrumentation
  • Industrial: Bundling and shielding wires exposed to harsh chemicals

Construction

  • Material: 100% polytetrafluoroethylene (PTFE) for maximum non-reactivity
  • Wall Thicknesses: Heavy, standard, light, and thin wall options
  • Available Sizes: Common inside diameters from 0.010" up to 0.250"
  • Colors: Natural (translucent), other colors on request

Specifications

  • Temperature Range: -65°C to +260°C continuous operation
  • Dielectric Strength: Typically 500–700 V/mil
  • Flame Rating: UL VW-1
  • Compliance: Meets ASTM D3295, UL224, and CSA standards
  • RoHS Compliant: Yes

Additional Information

PTFE spaghetti tubing is widely used for its low coefficient of friction, outstanding chemical inertness, and ability to retain flexibility across extreme temperatures. Available in cut-to-length spools and custom sizes, it ensures easy integration into existing cable and wire assemblies.
