Flexible, Low Capacitance 22 AWG Twisted Pairs

Belden Low Capacitance 22 AWG Twisted Multi-Pair Snake Cable Specifications

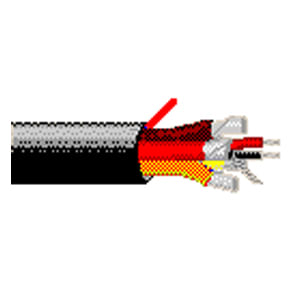

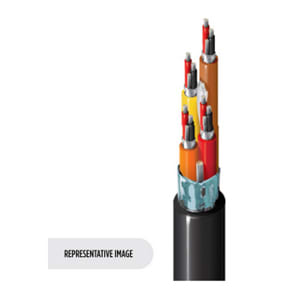

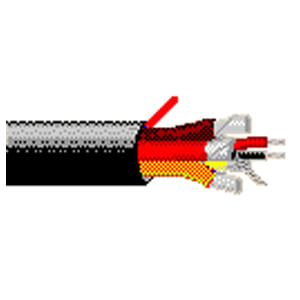

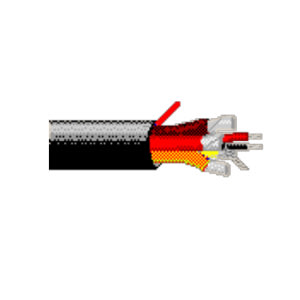

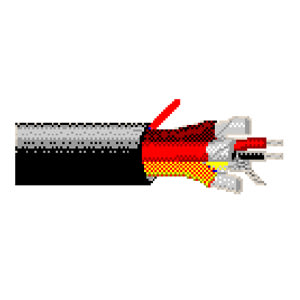

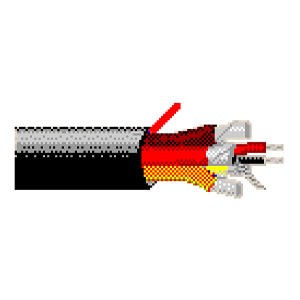

Multi-Pair Snake Cable Construction:

• Conductor: Stranded Tinned Copper
• Insulation: Datalene
• Shielding: Pairs are individually Beldfoil shielded
• Jacketing: Pairs are individually jacketed with numbered and color-coded PVC, Overall Matte Black PVC Jacket
• Pair shields and jackets are bonded for simultaneous stripping
• RipCord: Nylon
• Color Code: Red, Black
• Sizes Available: 22 AWG (between 4 and 52 pairs)

Multi-Pair Snake Cable Ratings and Approvals:

• Not NEC Rated
• Nominal OD Conductor: .030 inches
• Nominal OD Insulation: .060 inches
• Inner Pair Jacket OD: .153 inches
• Voltage Rating: 150V RMS
• Temperature Rating: 60°C
• Nominal Impedance: 70 ohms
• Nominal Velocity of Propagation: 78%
• Nominal Capacitance:
  • Between Conductors: 19 pF/Ft
  • Between Conductor/Shield: 35 pF/Ft
