DBS Cable

15 items

Sort by

Per Page:

1829a

Approx LBS/MFT29

AWG Size18

Cond. MaterialBare Copper Clad Steel, Bare Copper-Covered Steel

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyvinylchloride (PVC)

Max. Temp80C

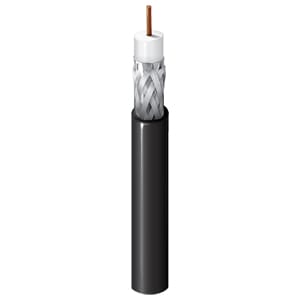

1829ac

Approx LBS/MFT27

AWG Size18

Cond. MaterialBare Copper, Bare Copper (Anti-Corrosion)

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyvinylchloride (PVC)

Max. Temp80C

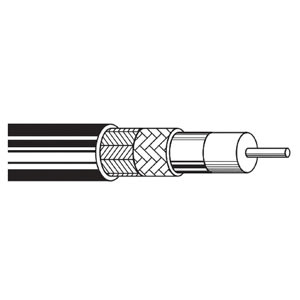

1829b

Approx LBS/MFT26

AWG Size18

Cond. MaterialBare Copper Clad Steel, Bare Copper-Covered Steel

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyethylene (PE)

Max. Temp80C

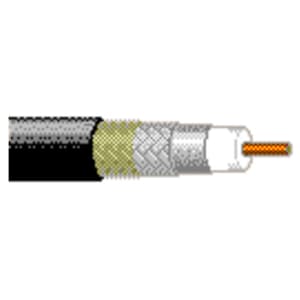

1829bc

Approx LBS/MFT27.00

AWG Size18

Cond. MaterialBare Copper, Bare Copper (Anti-Corrosion)

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyethylene (PE)

Max. Temp80C

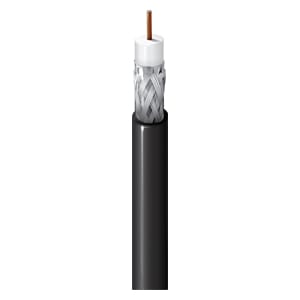

1829p

Approx LBS/MFT27

AWG Size18

Cond. MaterialBare Copper Clad Steel, Bare Copper-Covered Steel

Conductor Strandingsolid

Dielectric (in)0.17

Dielectric MaterialFoam Fluorinated Ethylene Propylene (FFEP)

Jacket MaterialFlamarrest

Max. Temp75C

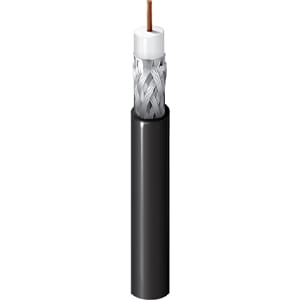

1829r

Approx LBS/MFT29

AWG Size18

Cond. MaterialBare Copper Clad Steel, Bare Copper-Covered Steel

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyvinylchloride (PVC)

Max. Temp80C

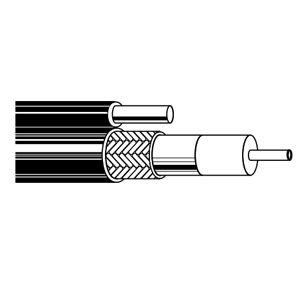

1839a

Approx LBS/MFT40

AWG Size18

Cond. MaterialBare Copper Clad Steel, Bare Copper-Covered Steel

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyvinylchloride (PVC)

Max. Temp80C

1839ac

Approx LBS/MFT44

AWG Size18

Cond. MaterialBare Copper, Bare Copper (Anti-Corrosion)

Conductor Strandingsolid

Dielectric (in)0.18

Dielectric MaterialGas-Injected Foam Polyethylene (FPE)

Jacket MaterialPolyvinylchloride (PVC)

Max. Temp80C

Belden DBS Coax Cable Specifications

DBS Cable Ratings and Approvals:

Maximum Temperature Rating:
- Non Plenum: 80°C
- Plenum: 75°C
NEC and CEC Ratings: Vary, see part info

DBS Wire Construction:

Conductor: Bare Copper or Bare Copper-Covered Steel
Insulation:
- Non-Plenum: Gas-Injected Foam Polyethylene
- Plenum: Foam FEP
Jacket:
- Non-Plenum: PVC or Polyethylene
- Plenum: Natural Flamarrest
Shield: varies, see part info
