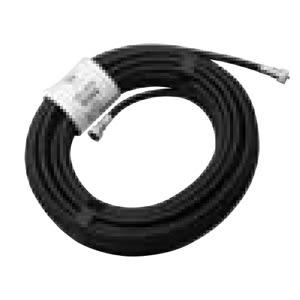

RG 8U Coax, Amateur Radio and CB Belden Coaxial Cable Assembly

These cable assemblies are designed for use with two-way systems, including commercial, amateur, marine, and CB applications. They work as the positive link between transmitter and antenna or receiver and antenna. They withstand high power requirements with low signal loss.

3 items

Belden Cable
9354
AWG Size11
Cond. MaterialBare Copper
Conductor Stranding7/19
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
No. of Strands7
Nom. O.D. (in)0.4030
ShieldOverall Braid Shield
Requires Quote
Belden Cable
9355
AWG Size11
Cond. MaterialBare Copper
Conductor Stranding7/19
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
No. of Strands7
Nom. O.D. (in)0.4030
ShieldOverall Braid Shield
Requires Quote
Belden Cable
9356
AWG Size11
Cond. MaterialBare Copper
Conductor Stranding7/19
Dielectric MaterialFoam Polyethylene (FPE)
Jacket MaterialPolyvinylchloride (PVC)
No. of Strands7
Nom. O.D. (in)0.4030
ShieldOverall Braid Shield
Requires Quote

Belden RG8U Coax Cable Assembly for Amateur Radio and CB Applications Specifications

RG 8U Cable Assembly Approvals and Ratings:

  • RG-8/U
  • 50 Ohm Cable
  • Coax meets UL AWM Style 1354: 30V, 80°C
  • Coax is Type CM Cable

RG 8U Cable Assembly Construction:

  • Conductor: Stranded Bare Copper
  • Insulation: Foam Polyethylene
  • Jacket: Black PVC
  • Shield: Military-type Braid Coverage, Bare Copper Braid (97% Coverage)
  • *Fitted with PL-259 connectors on both ends

RG8U Cable Assembly Applications:

These cable assemblies are ideal for use with two-way systems, including commercial, amateur, marine, and CB applications. They work as the positive link between transmitter and antenna or receiver and antenna. They withstand high power requirements with low signal loss.
