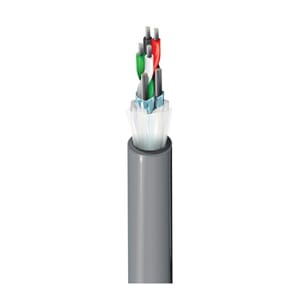

Approx LBS/MFT39
AWG Size24
Color Code ChartChart 3
Cond. MaterialTinned Copper
Conductor Stranding7/32
Dielectric MaterialDatalene
Drain Wire24 AWG Stranded Tinned Copper
Insul. MaterialDatalene
Interconnect Cables
5 items

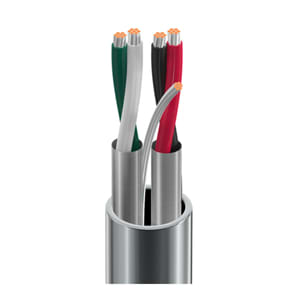

Approx LBS/MFT22.00
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Drain Wire24 AWG Stranded Tinned Copper
Equals2982SS
Insul. MaterialPolypropylene (PP)

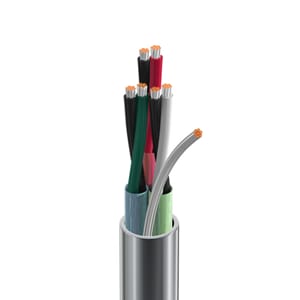

Approx LBS/MFT39
AWG Size22
Color Code ChartRed & Black, White & Black, Green & Black
Cond. MaterialTinned Copper
Conductor Stranding7/30
Dielectric MaterialPolypropylene (PP)
Drain Wire22 AWG Stranded Tinned Copper
Insul. MaterialPolypropylene (PP)

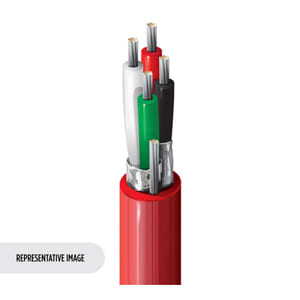

Approx LBS/MFT19
AWG Size22
Color Code ChartRed & Black, Green & White
Cond. MaterialTinned Copper
Conductor Stranding7/30
Dielectric MaterialFluorinated Ethylene Propylene (FEP)
Drain Wire24 AWG 7/32 Stranded Tinned Copper
Insul. MaterialFluorinated Ethylene Propylene (FEP)
Approx LBS/MFT0.00
AWG Size18
Color Code ChartBlack, Clear
Cond. MaterialTinned Copper
Conductor Stranding16/30
Dielectric MaterialPolyethylene (PE)
Drain Wire20 AWG Stranded Tinned Copper
Equals5028
Belden Interconnect Industrial Data Cable Specifications
Interconnect Cables Ratings and Approvals:
- UL AWM Style 2493 (300V, 60°C)
- UL AWM Style 2919 (30V, 80°C)
- UL AWM Style 2092 (300V, 60°C)
- Non-UL parts rated 300V RMS, 60°C or 300V RMS, non-conduit
- NEC and CEC Approvals:
- Non-Plenum: NEC CM, CEC CM
- Plenum: NEC CMP, CEC CMP FT6
Interconnect Cables Construction:
- Conductor: Stranded Tinned Copper, in twisted pairs
- Insulation: Datalene, Polypropylene, Polyethylene, or FEP (plenum)
- Jacket: PVC (non-plenum) or FEP (plenum)
- Shielding: Individually Beldfoil Shielded or Overall Beldfoil Shield
- Drain Wire: Stranded Tinned Copper
