Paired Cable with Overall Spiral Shield

4 items

8737
Belden Cable
8737
Approx LBS/MFT20
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/30
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.025
Requires Quote per FT
Quote Only

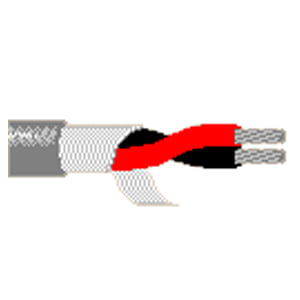

8759
Belden Cable
8759
Approx LBS/MFT25
AWG Size20
Color Code ChartBlack, Red
Cond. MaterialTinned Copper
Conductor Stranding7/28
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.025
Requires Quote per FT
Quote Only

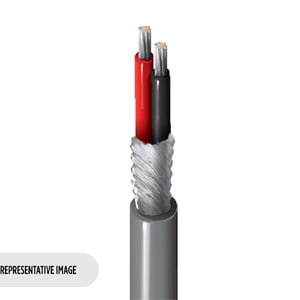

8790
Belden Cable
8790
Approx LBS/MFT35
AWG Size18
Color Code ChartRed, White
Cond. MaterialTinned Copper
Conductor Stranding7/26
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.028
Requires Quote per FT
Quote Only

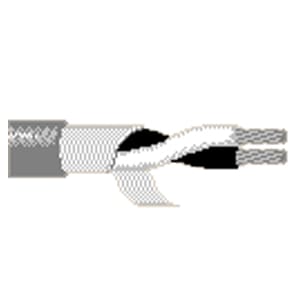

8780
Belden Cable
8780
Approx LBS/MFT46
AWG Size16
Color Code ChartBlack, White
Cond. MaterialTinned Copper
Conductor Stranding19/29
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.03
Requires Quote per FT
Quote Only

Belden Paired Cable with Overall Spiral Shield (UL 2095) Specifications

Paired Cable with Overall Spiral Shield Approvals and Ratings:

  • UL Listed: UL AWM Style 2095 (22 AWG and 20 AWG only)
  • NEC Type CMG
  • CEC Type CMG FT4
  • Voltage Rating: 300V
  • Temperature Rating:
    • 22 AWG and 20 AWG: 80°C
    • 18 AWG and 16 AWG: 60°C

Paired Cable with Overall Spiral Shield Construction:

  • Conductor: Stranded Tinned Copper
  • Configuration: Twisted Pair
  • Insulation: Polyvinyl Chloride (PVC)
  • Jacket: Chrome PVC
  • Shield: Tinned Copper Spiral Wrapped Shield (85-89% Coverage)
