High Strand Speaker Cable

8 items

Belden Cable

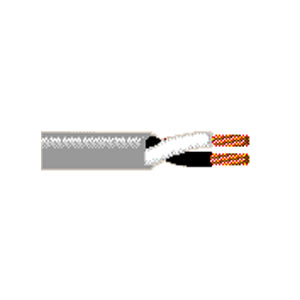

5300UP
Approx LBS/MFT20.00
AWG Size18
Color Code ChartBlack, White
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding42
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

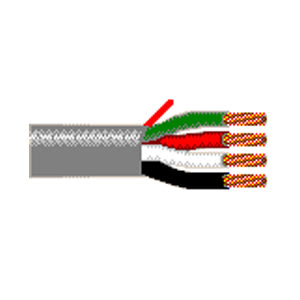

5302UP
Approx LBS/MFT37
AWG Size18
Color Code ChartBlack, White, Red, Green
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding42
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable

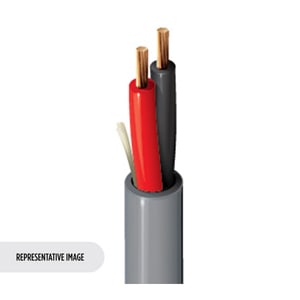

5200UP
Approx LBS/MFT28.00
AWG Size16
Color Code ChartBlack, White
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding65
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable
5202UP
Approx LBS/MFT51.00
AWG Size16
Color Code ChartBlack, White, Red, Green
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding65
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Belden Cable
5100UP
Approx LBS/MFT43.00
AWG Size14
Color Code ChartBlack, White
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding42
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.02
Requires Quote per FT
Belden Cable
5102UP
Approx LBS/MFT81
AWG Size14
Color Code ChartBlack, White, Red, Green
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding42
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.018
Requires Quote
Belden Cable
5000UP
Approx LBS/MFT64
AWG Size12
Color Code ChartBlack, White
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding65
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.018
Requires Quote
Belden Cable

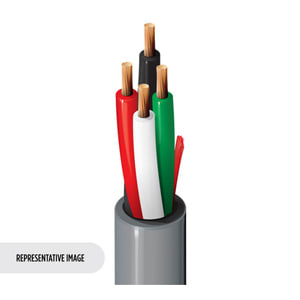

5002UP
Approx LBS/MFT121.00
AWG Size12
Color Code ChartBlack, White, Red, Green
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding65
Insul. MaterialHigh-grade Polyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.018
Requires Quote per FT

Belden High Strand Speaker Cable Specifications

Speaker Cable Construction:

  • Conductors: Bare High-Conductivity ETP Copper, Highly Stranded for Flexibility
  • Insulation: High-Grade PVC
  • Jacket: PVC
  • Jacket Colors Available: Blue, Green, White, Black, Grey
  • RipCord
  • Sequential Footage Markings Every 2 ft.

Speaker Cable Ratings and Approvals:

  • NEC Ratings:
    • 18 AWG and 16 AWG: CM Cable
    • 14 AWG and 12 AWG: CL3 Cable
    • 10 AWG: CL2 (Audio Use Only)
  • Temperature Rating: 75°C

Speaker Cable Applications:

  • Speaker Systems
  • Sound and Audio Systems
  • Intercom and PA Systems
  • Home Theater and Entertainment Systems
  • Stadium and Arena Speaker Systems
