Speaker Cable FPLR or CL3R

15 items

Belden Cable
5500UE
Approx LBS/MFT8
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

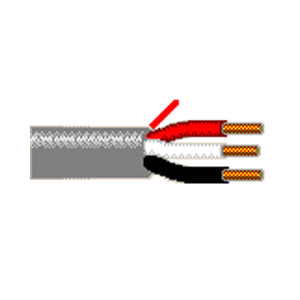

5501UE
Approx LBS/MFT10
AWG Size22
Color Code ChartBlack, Red, White
Cond. MaterialBare Copper
Conductor Stranding7/30
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

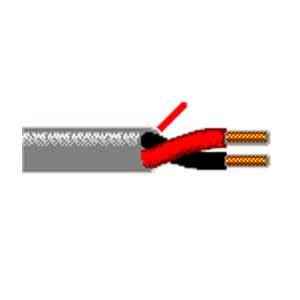

5520UE
Approx LBS/MFT8
AWG Size22
Color Code ChartBlack, Red
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

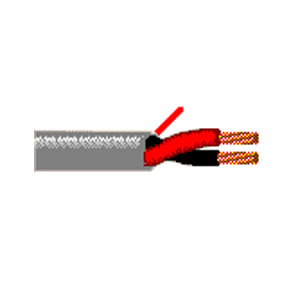

5400UE
Approx LBS/MFT12.00
AWG Size20
Color Code ChartBlack, Red
Cond. MaterialBare Copper
Conductor Stranding7/28
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable
5401UE
Approx LBS/MFT16.00
AWG Size20
Color Code ChartBlack, Red, White
Cond. MaterialBare Copper
Conductor Stranding7/28
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

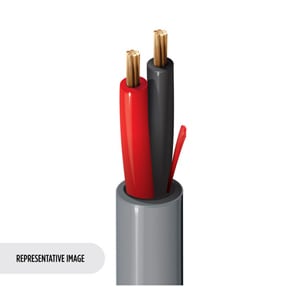

5300UE
Approx LBS/MFT15.00, 64.30
AWG Size18
Color Code ChartBlack, Red
Cond. MaterialBare Copper
Conductor Stranding7/26
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

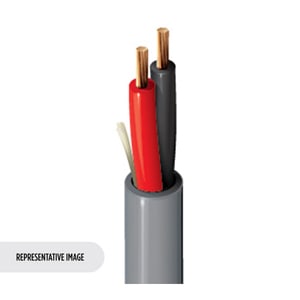

5301UE
Approx LBS/MFT22.00
AWG Size18
Color Code ChartBlack, Red, White
Cond. MaterialBare Copper
Conductor Stranding7/26
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote per FT
Belden Cable

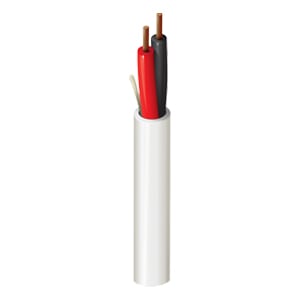

5320UE
Approx LBS/MFT15
AWG Size18
Color Code ChartBlack, Red
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolypropylene (PP)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.017
Requires Quote

Belden Speaker Cable (CMR FPLR or CL3R) Specifications

Speaker Cable Construction:

  • Conductors: Solid or Stranded Bare Copper
  • Insulation: Polyvinylchloride (PVC)
  • Jacket: Polyvinylchloride (PVC)
  • Jacket Color: Grey
  • RipCord
  • Sequential Footage Markings Every 2 ft.

Speaker Cable Ratings and Approvals:

  • NEC Ratings:
    • 22 to 16 AWG: CMR FPLR (dual rating applies to select parts only)
    • 14 to 12 AWG: CL3R
  • CEC Ratings: 22 to 16 AWG: CMG FT4
  • NEC Articles:
    • 22 to 16 AWG: 800
    • 14 to 12 AWG: 725
  • Voltage Rating: 300V
  • Temperature Rating: 75°C

Speaker Cable Applications:

  • Intercom and PA Systems
  • Sound and Audio Systems
  • Security Systems
  • Power Limited Controls
  • Single Line Telephones
