LMR-240

The LMR 240 Cable is one of the many low-loss coaxial cables we carry at Allied Wire and Cable. This cable features a bare copper tube inner conductor and an aluminum tape outer conductor, which enables the tightest bend radius of any cable of similar size and performance. It also features a foam PE dielectric and a tinned copper braid. This cable also has a jacket, but materials vary per product. LMR-240-FR is approved for use in mining operations per MSHA-P standards.

11 items

Grid List Table

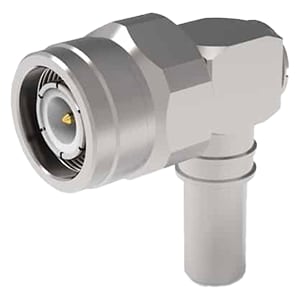

LMR 240 connectors are designed by Times Microwave for use with LMR-240 cable. These connectors are offered in a variety of common interface types, including F Male, N Male, 1.0/2.3 DIN, N Female, BNC Male and more. Reverse polarity, straight plug, right angle, panel mount, bulkhead jack and straight jack connectors are all available choices. LMR 240 coax connectors feature either solder or non-solder center pins. The majority of LMR-240 connectors use a crimp outer attachment in standard hex crimp sizes.

LMR 240 Coax Cable Specifications

LMR 240 Construction:

  • Inner Conductor: Solid Bare Copper
  • Dielectric: Foam Polyethylene (FPE)
  • Outer Conductor: Aluminum Tape
  • Outer Braid: Tinned Copper
  • Jacket: Specified per part, see individual product specs.

LMR 240 Ratings:

  • Temperature:
    • Installation: -40°C to 85°C
    • Storage: -70°C to 85°C
    • Operating: -40°C to 85°C
  • Voltage Rating: 1500 volts
  • UL/NEC Type CMR (LMR-240-FR and LMR-240-FR-PVC only)
  • CSA FT4 (LMR-240-FR and LMR-240-FR-PVC only)
  • RF Shielding: 50 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 90 dB

LMR 240 Applications:

  • LMR 240 coax is ideal for jumper assemblies found in wireless communications systems.
  • Recommended for use in short antenna feeder runs (ex. WLL, GPS, LMR, Mobile Antennas)
  • LMR 240 coax can be used in any application requiring easily-routed, low-loss RF cable, such as WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, and Mobile Antennas.
  • As indicated in LMR 240 specs, these coaxial cables are specifically designed for watertight, indoor/outdoor, riser (CMR rated parts), and mobile antenna applications.

LMR 240 Standard Connectors:

Construction of LMR 240 Coax Connectors:

  • Description: Straight Plug, Right Angle, Panel Mount, Reverse Polarity, Bulkhead Jack or Straight Jack (see part specs for full details)
  • Inner Contact Attach: Solder or Spring Finger (see part specs for full details)
  • Outer Contact Attach: Crimp or Clamp (see part specs for full details)
  • See chart below and individual LMR 240 Coax Connector part specs for more info.
